80KM 10G BIDI 80KM SFP+ STM-64 OC-192 WDM 10G-ZR4-80KM SMF
1490nm/1550nm
General
HLSBxx1XL-CD80 series single mode transceiver is small form factor
pluggable module for optical data communications such as 10G
Ethernet. It is with the SFP+ 20-pin connector to allow hot plug
capability. The HLSBxx1XL-CD80 module is designed for single mode
fiber and operates at a nominal wavelength of 1490nm or 1550nm; The
transmitter section uses a EML laser, which is class 1 laser
compliant according to International Safety Standard IEC-60825. The
receiver section consists of a APD photodiode integrated with a
TIA. The transceiver designs are optimized for high perform -ance
and cost effective to supply customers the best solutions for
telecommunication.
Features
Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot pluggable SFP+ footprint
Cooled 1490nm EML transmitter, 1550nm APD receiver
Cooled 1550nm EML transmitter, 1490nm APD receiver
Applicable for 80km SMF connection
Low power consumption, < 1.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C
Application
10GBASE-ZR at 10.3125Gbps
10GBASE-ZW at 9.953Gbps
Other Optical Links
BIDI(WDM) SFP Transceivers
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1490 80km | SFP+ BiDi 80km Tx1490nm/Rx1550nm LC |
| SFP+ BiDi 1550 80km | SFP+ BiDi 80km Tx1550nm/Rx1490nm LC |
Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1470 | 1490 | 1510 | nm | |
| 1530 | 1550 | 1565 | |
| Ave. output power (Enabled) | PAVE | 0 | | 5 | dBm | 1 |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Extinction Ratio | ER | 9 | | | dB | |
| RMS spectral width | Δλ | | | 1 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 50 | ps | |
| Dispersion penalty | TDP | | | 3.2 | dB | |
| Relative Intensity Noise | RIN | | | -128 | dB/Hz | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | λ | 1530 | 1550 | 1565 | nm | |
| 1470 | 1490 | 1510 | |
| Receiver Sensitivity | PSEN1 | | | -22 | dBm | 2 |
| Sensitivity over 80Km fiber | PSEN2 | | | -20 | dBm | 2 |
| Overload | PAVE | | | -7 | dBm | |
| LOS Assert | Pa | -35 | | | dBm | |
| LOS De-assert | Pd | | | -24 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.

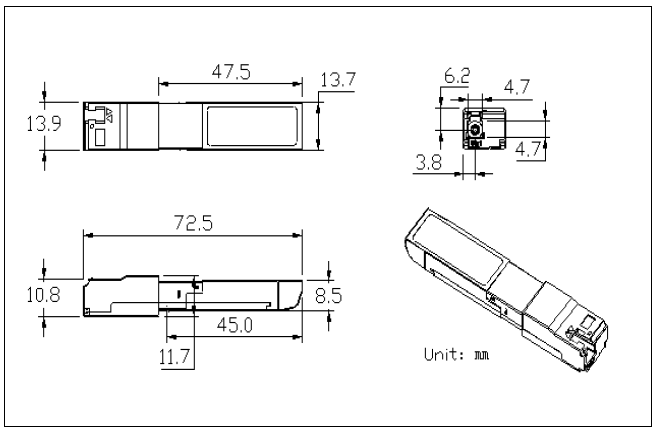

Package Dimensions
