QSFP56 200G 2KM QSFP56-200G-FR4 2KM Dual LC QSFP56 1310nm SFP Transceiver DOM
General
The HiLink 200G QSFP56 FR4 is a 4×50Gbps singlemode fiber, hot pluggable optical transceiver.HiLink’s unique SystemOnGlassTM (SOGTM) technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 200Gbps data link in a compact QSFP56 footprint.
The optical connectivity is based on two Singlemode Fiber (SMF) LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 50Gbps Coarse Wavelength Division Multiplex (CWDM) channels, whose wavelengths are in the 1310nm range. The 200G QSFP56 FR4 transceiver is designed for applications with a reach up to 2km and with the use of FEC.
The HiLink transceiver is based on proprietary HiLink PLC technology, using surface mounted opto-electronic devices with no free space elements. The unique design of the optical engine facilitates unparalleled compactness while maintaining Telcordia robustness.
Features
Compliant with IEEE Std 802.3bs
Compliant with 200G-FR4 optical specifications
Compliant with SFF-8679
Compliant with CMIS4.0 Management interface specifications
4x53.125Gb/s electrical interface (200GAUI-4)
Up to 2km transmission on single mode fiber (SMF) with FEC
Single +3.3V power supply
Case temperature range: 0 ~ +70℃
Maximum power consumption 7W
Duplex LC connector
RoHS complaint
Application
200GBASE-SR4 Ethernet links
Data centers
Order Information
| Fiber Type | Multi Mode | Connector Type | Dual LC |
| Model Number | HL-QSFP56-200G-FR4 | Brand Name | Hilink |
| Origin | Mainland China | Certification | CE,FCC,RoHS |
| Place of origin | Guangdong,China | Data transfer rate | 200G |
| Wavelength | 1310nm | Distance | 2KM |
| Fiber Connector | LC | Fiber Mode | SMF |
| power consumption | < 1.8W | CE RoHS | Compliant |
| Warranty | 3 years | Application | FTTX |

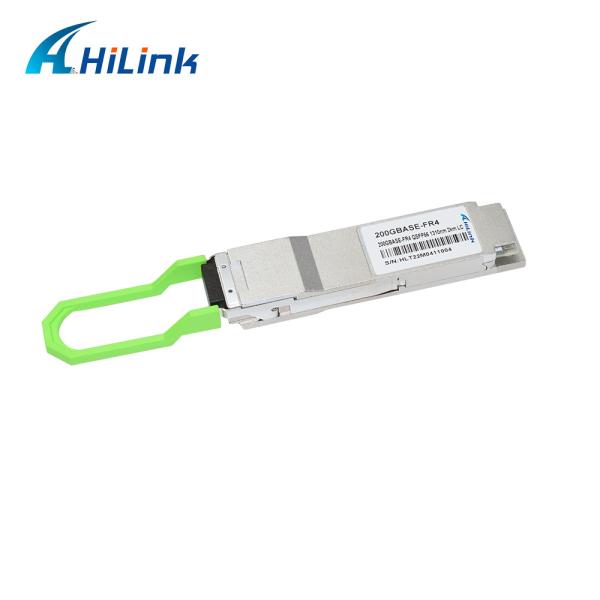

Product picture shows
Transmitter Optical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Notes |
| OMA Optical Power per lane | Po | -1.2 | - | 4.5 | dBm | 1 |
| Average Optical Power per lane | Pav | -4.2 | - | 4.7 | dBm | 1 |
| Center Wavelenght Range | L1 | 1264.5 | - | 1277.5 | nm | - |
| | L2 | 1284.5 | - | 1297.5 | nm | - |
| | L3 | 1304.5 | - | 1317.5 | nm | - |
| | L4 | 1324.5 | - | 1337.5 | nm | - |
| Extinction Ratio | ER | 3.5 | - | - | dB | 2 |
| Transmitter and dispersion penalty eye | TDECQ | - | - | 3.3 | dB | 2 |
| Spectral width(-20dB) | Δλ | - | - | 1 | nm | - |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | - |
| Transmitter reflectance | - | - | - | -26 | dB | - |
| Pout @TX-Disable Asserted | Poff | - | - | -30 | dBm | 1 |
