10Gb/s WDM 5KM 10G SFP+ BIDI 1270/1330nm LC SFP Transceivers
General
The HL-SFP-BXU-L5/HL-SFP-BXD-L5Transceiver is intended for5km reach
service from 0.6Gb/s to 10.3125Gb/s BI-direction single mode
high-speed communications equipment where low-cost, extraordinary
performance and reliability are essential. It consumes low power,
operates base on 3.3V DC power supply and is offered in the
industrial temperature range. They are compliant with SFP28 MSA,
SFF-8431 and SFF-8432.
The low jitter and low bit error rate optical assembly features a
DML laser transmitter and PIN/TIA receiver. The differential AC
coupled Tx and Rx data interfaces are CML compatible. The device is
Class I laser safety compliant.
Features
Operating data rate up to 10.3125Gbps
Up to5km transmission distance
High sensitivityPIN photodiode and TIA
12dB Power Budget at Least
LC single connector
Hot pluggable 20pin connector
Low power consumption <1.2 W
Single +3.3V±5% power supply
Compliant with SFF-8472&SFF-8431
Fully RoHS Compliant
Compliant with IEEE802.3ae 10GBASE-LR/LW
Operating temperature range:
Commercial: 0°C to +70°C
Industrial: -40°C to +85°C
Application
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
Order information
| Part Number | Product Description |
| HL-SFP-BXU-L5 | 10G SFP+5km BIDItransceiver 1270 Tx/ 1330 Rx,C-TEMP |
| HL-SFP-BXD-L5 | 10G SFP+5kmBIDItransceiver 1330 Tx/ 1270 Rx,C-TEMP |
| HL-SFP-BXU-L5 | 10G SFP+5km BIDItransceiver 1270 Tx/ 1330 Rx,I-TEMP |
| HL-SFP-BXD-L5 | 10G SFP+5kmBIDItransceiver 1330 Tx/ 1270 Rx,I-TEMP |
BIDI(WDM) SFP Transceivers
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1490 80km | SFP+ BiDi 80km Tx1490nm/Rx1550nm LC |
| SFP+ BiDi 1550 80km | SFP+ BiDi 80km Tx1550nm/Rx1490nm LC |

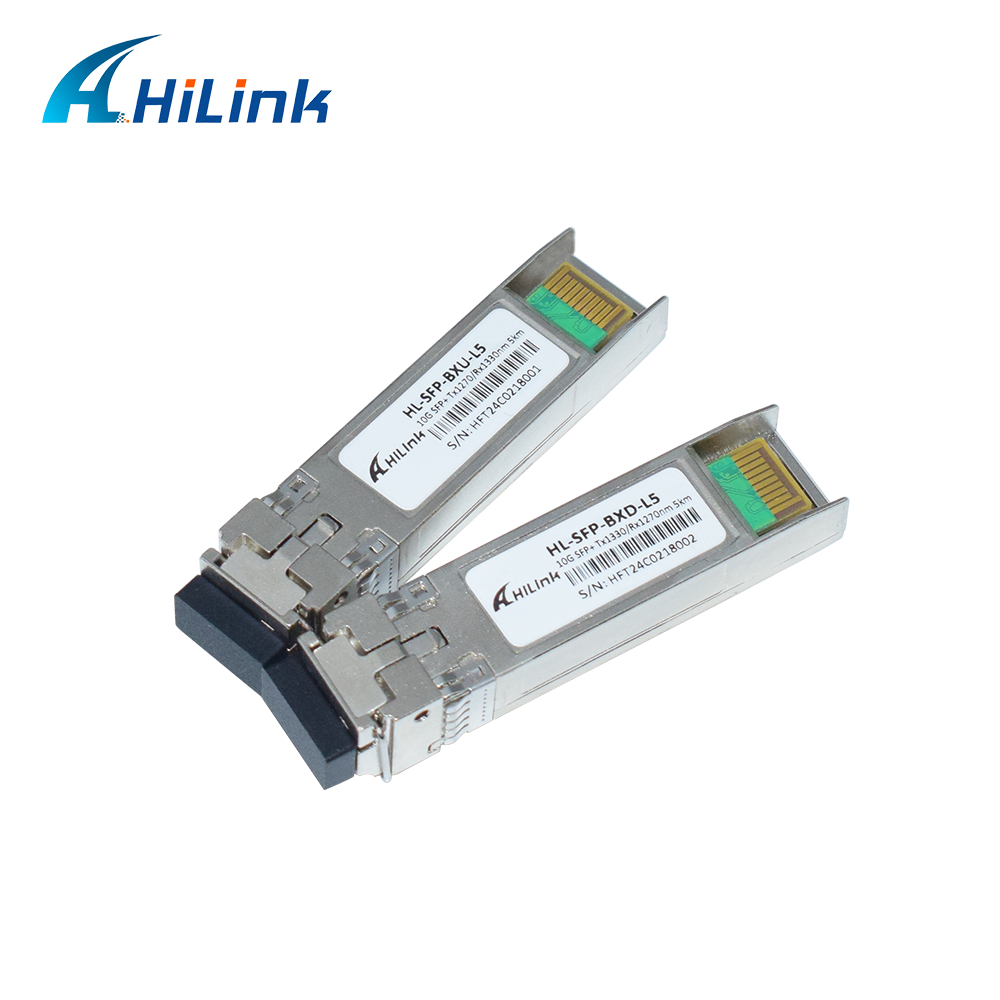

Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Unit | Min | Typ | Max | Note |
| Transmitter |
| Center Wavelength ( OFSFBI10G08x-23) | λ | nm | 1260 | 1270 | 1280 | |
| Center Wavelength ( OFSFBI10G08x-32) | λ | nm | 1320 | 1330 | 1340 | |
| Average Output Power | Pav | dBm | -5 | | 4 | |
| Spectral Width (-20dB) | s | nm | | | 1 | |
| Extinction Ratio | ER | dB | 3.5 | | | |
| Side Mode Suppression Ratio | SMSR | dB | 30 | | | |
| Average Launch Power of OFF Transmitter | POFF | dBm | | | -30 | |
| Relative Intensity Noise | RIN | dB/Hz | | | -128 | |
| Receiver |
| Center Wavelength ( OFSFBI10G08x-23) | λC | nm | 1320 | 1330 | 1340 | |
| Center Wavelength ( OFSFBI10G08x-32) | λC | nm | 1260 | 1270 | 1280 | |
| Receiver Sensitivity | RSENSE | dBm | | | -14 | 1 |
| Receiver Overload | Pmax | dBm | 2 | | | |
| Receiver Reflectance | | dB | | | -12 | |
| LOS Assert | LOSA | dBm | -30 | | | |
| LOS De-Assert LOS | LOSD | dBm | | | -17 | |
| LOS Hysteresis | | dB | 0.5 | | | |
Notes:
Measured at 10.3125Gb/s, ER>3.5dBm, PRBS 231-1 and BER better than or equal to 1E-12;
Package Dimensions
