HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM

Ask Lasest Price
Brand Name :	HILINK
Model Number :	HL-QSFP28-100G-FR1
Certification :	CE FCC Rohs
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, Paypal
Supply Ability :	3000 pairs per Week
Delivery Time :	1-4 days

Add to Cart

Product Details
Company Profile

HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM

HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM

General

This product is a transceiver module designed for 2km optical communication applications. The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector. The module has a maximum power consumption of 3.5W.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features

QSFP28 MSA compliant

Supports 53.125Gbaud

100G Lambda MSA 100G-FR Specification compliant

Up to 2km transmission on single mode fiber (SMF) with FEC

Operating case temperature: 0 to 70℃

4x25G electrical interface (OIF CEI-28G- VSR)

Maximum power consumption 4.5W

LC duplex connector

RoHS compliant

Application

Data Center Interconnect

100G Ethernet

Enterprise networking

Order Information

Fiber Type	Single Mode	Connector Type	LC/UPC
Model Number	HL-QSFP28-100G-FR1	Brand Name	Hilink
Origin	Mainland China	Certification	CE,FCC,RoHS
Place of origin	Guangdong,China	Data transfer rate	100G
Wavelength	1310nm	Distance	2KM
Fiber Connector	Dulplex LC	Fiber Mode	SMF
power consumption	< 1.8W	CE RoHS	Compliant
Warranty	3 years	Application	FTTX

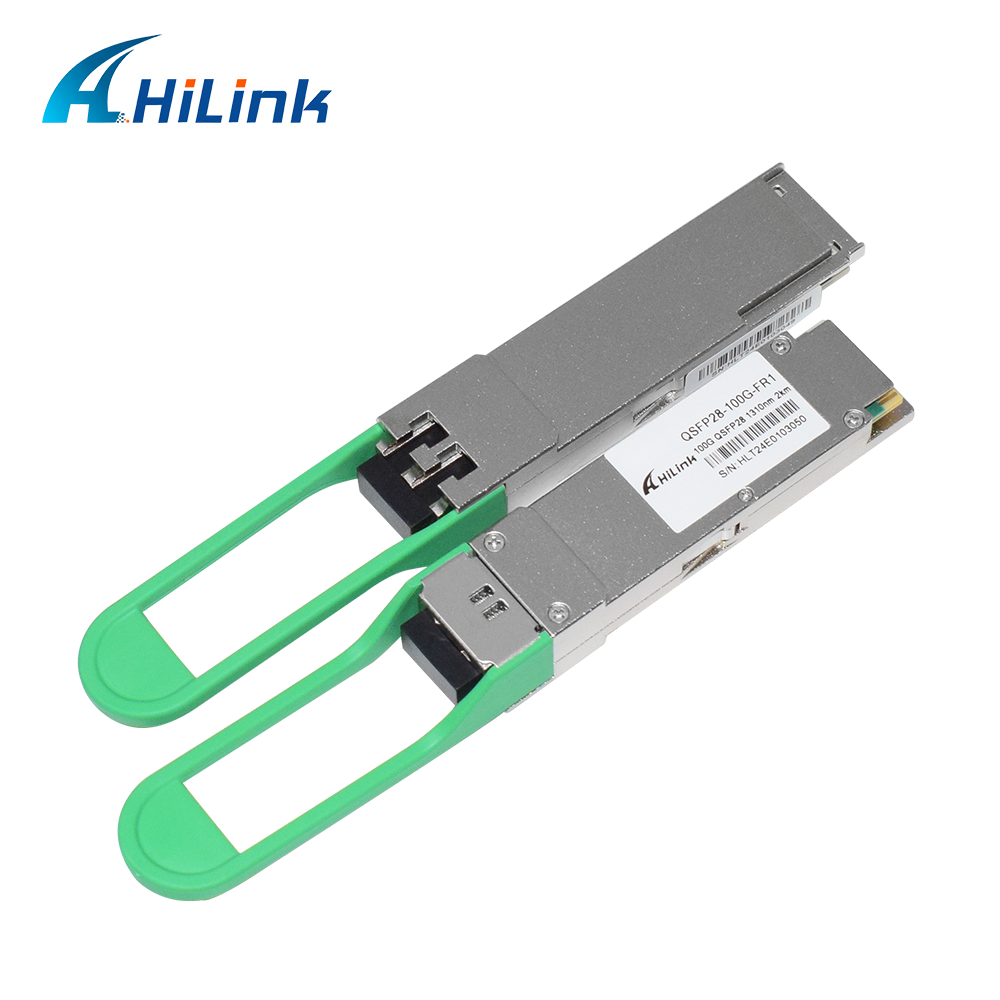

Product Picture Show

HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM

Package Dimensions

. HL-QSFP28-100G-FR1 2KM 100Gbps QSFP28 FR Single Lambda Transceiver SMF DOM
