    Long Distance 200KM 1000BASE-ZX 1.25G SFP Transceiver 1550nm 200KM SMF

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-SFP-1.25G-200KM
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 500/week
    • Product Details
    • Company Profile

    Long Distance 200KM 1000BASE-ZX 1.25G SFP Transceiver 1550nm 200KM SMF

    Long Distance 200KM 1000BASE-ZX 1.25G 1550nm 200KM SMF SFP Transceiver

    General:

    HILINK’s 1.25G 1550nm 200km Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses an APD receiver and the transmitter uses a 1550 nm DFB laser, up to 42dB link budge ensure this module 1000Base Ethernet 200km application.

    Features:

    Up to 1.25Gb/s Data Links

    Hot-Pluggable

    Duplex LC connector

    Up to 200km on 9/125μm SMF

    1550nm COOLED DFB laser transmitter

    APD Receiver

    Single +3.3V Power Supply

    Monitoring Interface Compliant with SFF-8472

    Maximum Power<1.5W

    Operating temperature range:Commercial: 0°C to 70°C,Industrial: -40°C to +85°C

    RoHS compliant and Lead Free

    Applications:

    Metro/Access Networks

    1.25 Gb/s 1000Base-EZX Ethernet

    1×Fibre Channel

    Other Optical Links

    1000Base Transceiver Series:

    GLC-SX 100BASE-SX SFP 850nm LC 550M
    GLC-LX/LH 100BASE-LH SFP 1310nm LC 10KM
    GLC-EX-1310 100BASE-EX SFP 1310nm LC 40KM
    GLC-EX-1550 100BASE-EX SFP 1550nm LC 40KM
    GLC-ZX-80 100BASE-ZX SFP 1550nm LC 80KM
    GLC-ZX-120 100BASE-ZX SFP 1550nm LC 120KM
    GLC-ZX-160 100BASE-ZX SFP 1550nm LC 160KM
    GLC-ZX-200 100BASE-ZX SFP 1550nm LC 200KM

    Guarantee:
    We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

    What we supply:

    We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.

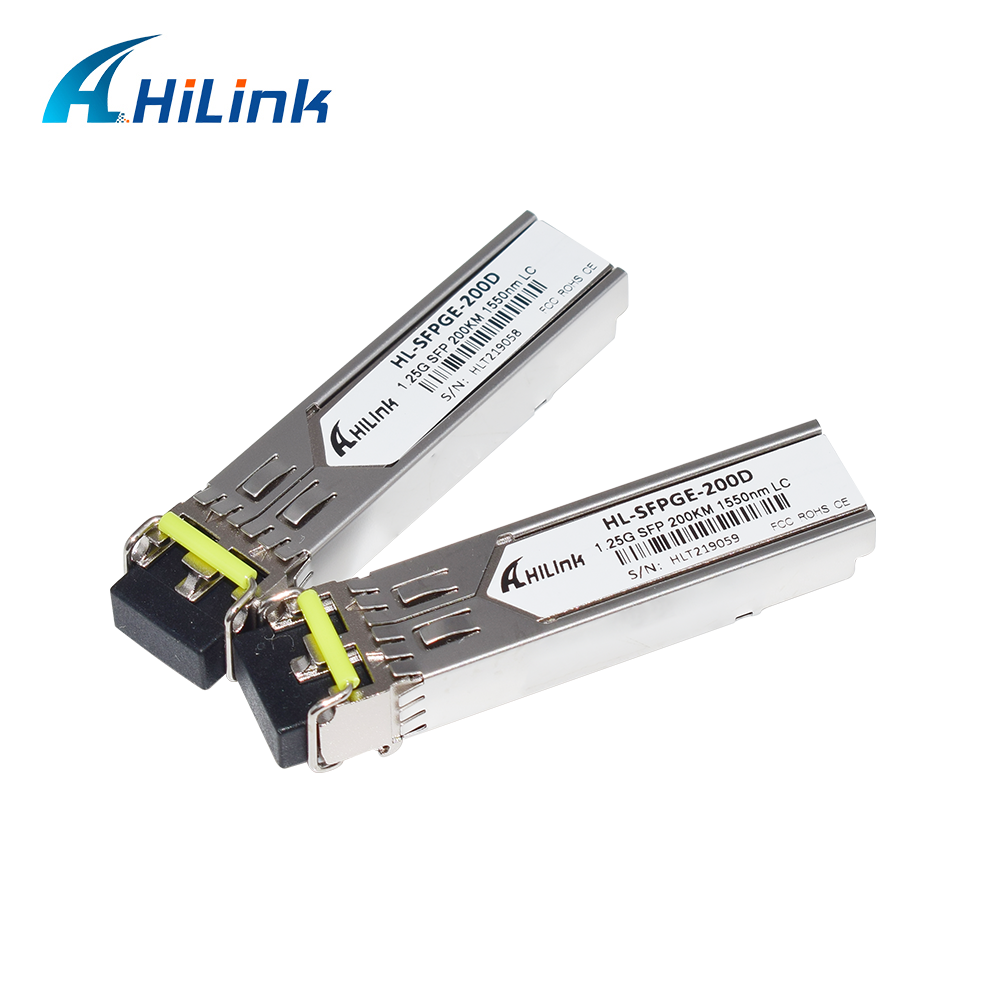

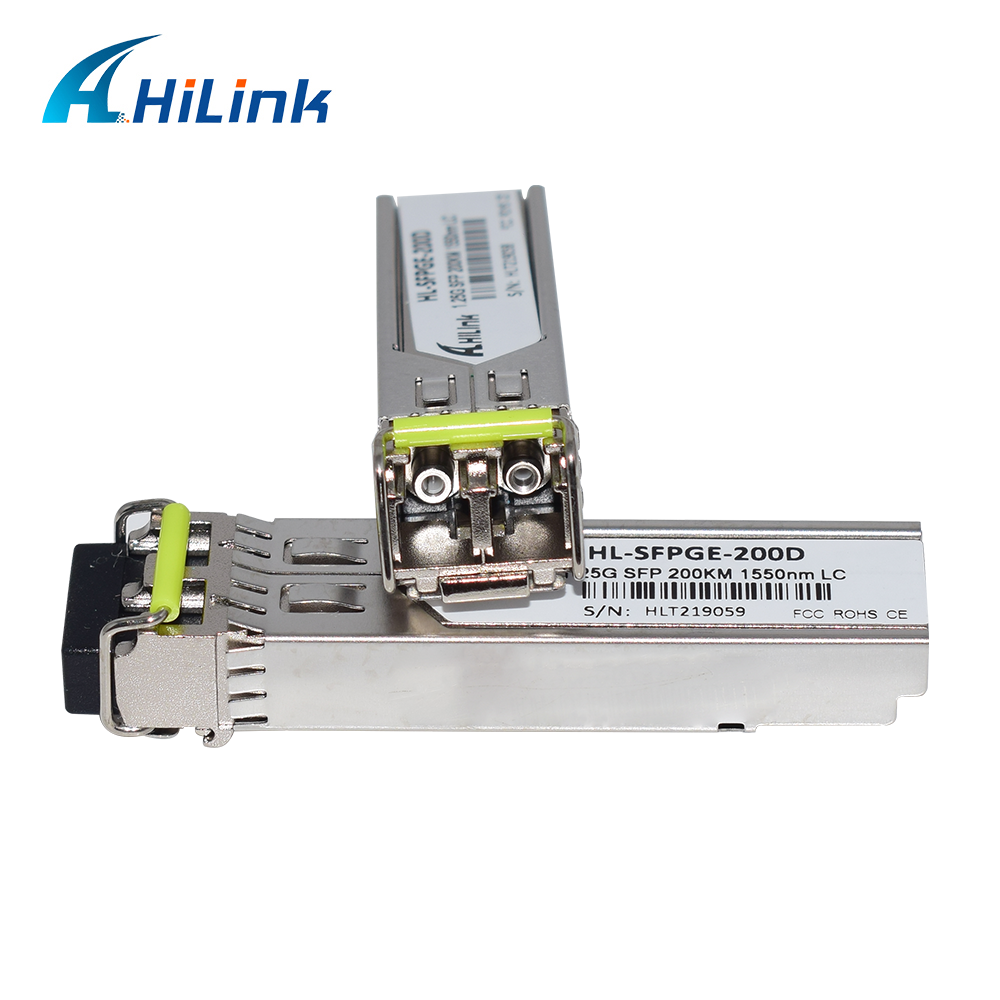

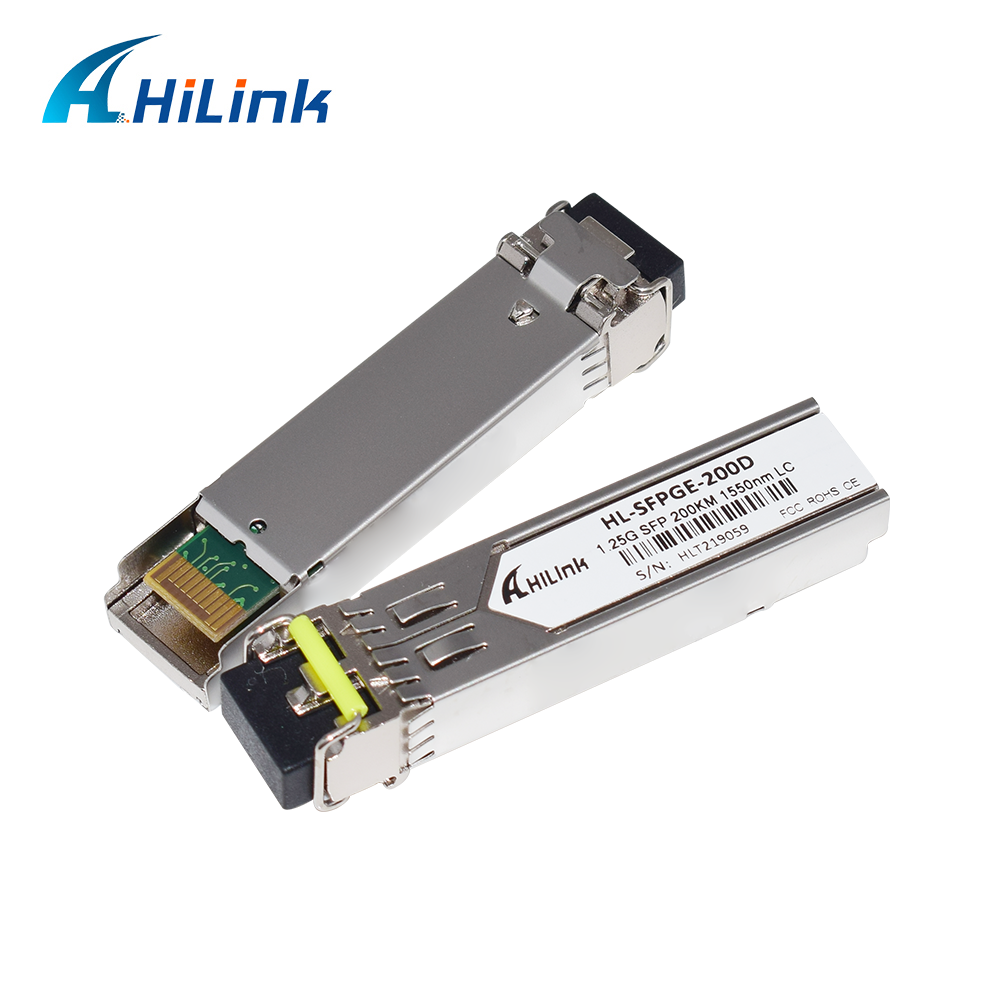

    Product picture show:

    Long Distance 200KM 1000BASE-ZX 1.25G SFP Transceiver 1550nm 200KM SMFLong Distance 200KM 1000BASE-ZX 1.25G SFP Transceiver 1550nm 200KM SMFLong Distance 200KM 1000BASE-ZX 1.25G SFP Transceiver 1550nm 200KM SMF

    Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)

    Parameter Symbol Min. Typical Max. Unit Note
    Transmitter Section:
    Center Wavelength λc 1530 1550 1570 nm
    Spectral Width σ 1 nm
    Side Mode Suppression Ratio SMSR 30 dB
    Optical Output Power Pout +3 +7 dBm 1
    Extinction Ratio ER 9 dB
    Optical Rise/Fall Time tr / tf 260 ps 2
    Relative Intensity Noise RIN -120 dB/Hz
    Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)
    Receiver Section:
    Optical Input Wavelength λc 1270 1610 nm
    Receiver Overload Pol -7 dBm 4
    RX Sensitivity Sen -37 dBm 4
    RX_LOS Assert LOS A -46 dBm
    RX_LOS De-assert LOS D -39 dBm
    RX_LOS Hysteresis LOS H 0.5 dB
    General Specifications:
    Data Rate BR 1.25 Gb/s
    Bit Error Rate BER 10-12
    Max. Supported Link Length on 9/125μm SMF@1.25Gb/s LMAX 200 km
    Total System Budget LB 40 dB

    Note:

    1. The optical power is launched into SMF.

    2. 20-80%.

    3. Jitter measurements taken using Agilent OMNIBERT 718 in accordance with GR-253.

    4. Measured with PRBS 27-1 at 10-12 BER

    .

    Mechanical Specifications:

    Long Distance 200KM 1000BASE-ZX 1.25G SFP Transceiver 1550nm 200KM SMF

    FAQ:

    Q:Do you sell second-hand products?

    A:No.All our products are brand new,we never use secont-hand components.

    Q:What payment terms do you accept?

    A:T/T,Paypal,Western Union are acceptable.

    Q:What are the shipping ways can you offer?

    A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

    Q:Do your products come with warranty?

    A:Yes,We provide 3 years warranty for all our products from the date of shipment.

    Q:How to place an order?

    A:1>Order details confirmed,please tell us the model and quantity you need.
    2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3>Confirm and ship the goods, then tracking number will be sent to you promptly.
    4>We will help to track your goods until you receive them safely.

    As we have various kinds of products,if you can't find the correct item you need.Please send us inquiry.We will follow up shortly.
