General:
1.25G 80KM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form
Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Features:
Up to 1.25Gb/s dual data links
Hot-pluggable SFP footprint
1550nm DFB laser transmitter
Duplex LC connector
Up to 80km on 9/125µm SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Low power dissipation <700mW
Commercial operating temperature range: 0°C to +70°C
Applications:
Gigabit Ethernet
1.06 Gb/s Fibre Channel
1000Base Transceiver Series:
| GLC-SX | 100BASE-SX SFP 850nm LC 550M |
| GLC-LX/LH | 100BASE-LH SFP 1310nm LC 10KM |
| GLC-EX-1310 | 100BASE-EX SFP 1310nm LC 40KM |
| GLC-EX-1550 | 100BASE-EX SFP 1550nm LC 40KM |
| GLC-ZX-80 | 100BASE-ZX SFP 1550nm LC 80KM |
| GLC-ZX-120 | 100BASE-ZX SFP 1550nm LC 120KM |
| GLC-ZX-160 | 100BASE-ZX SFP 1550nm LC 160KM |
| GLC-ZX-200 | 100BASE-ZX SFP 1550nm LC 200KM |
Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.

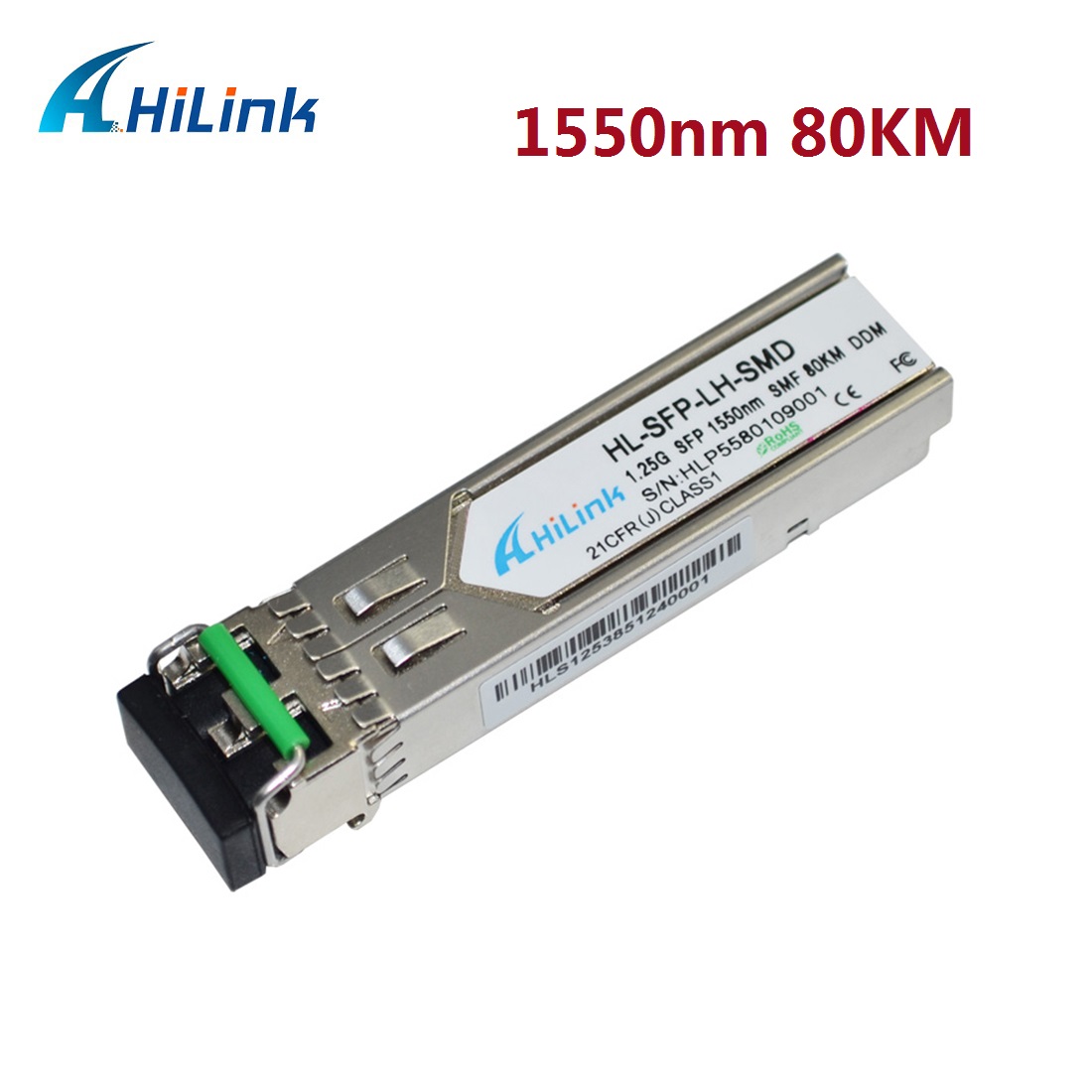

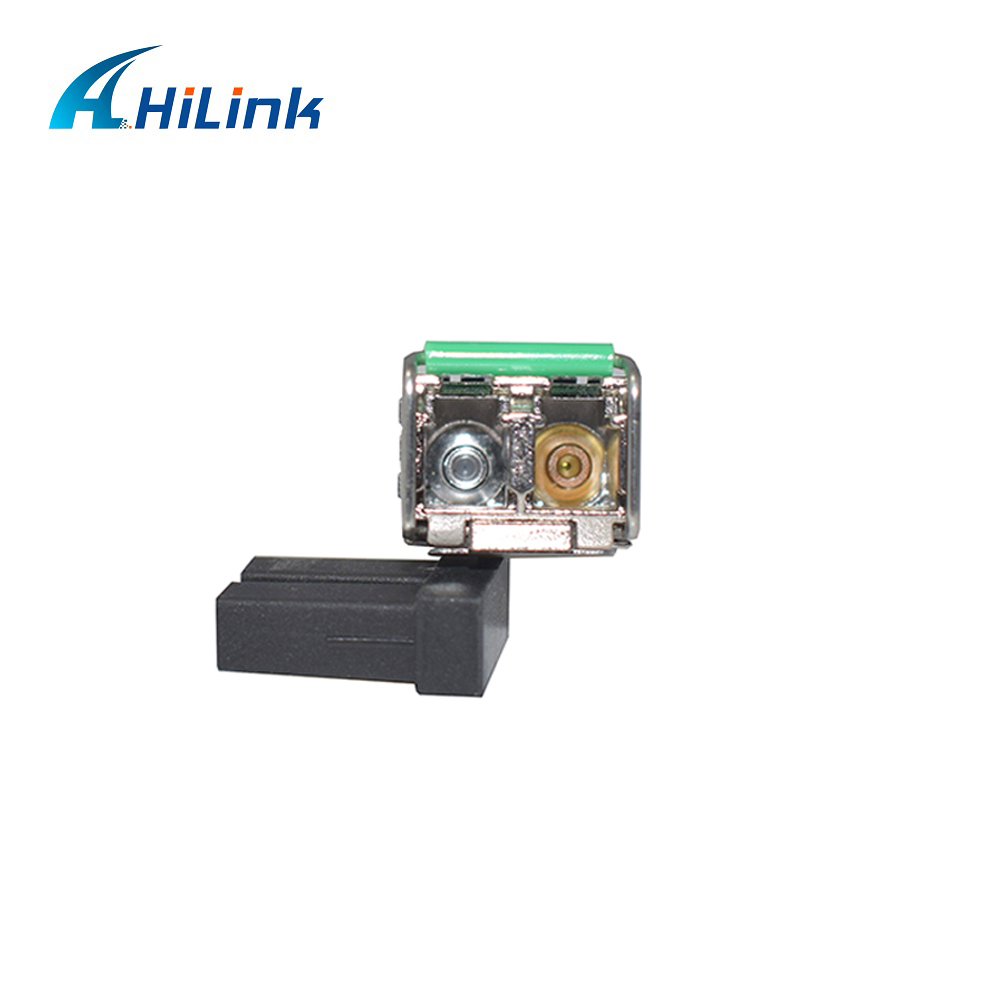

Product picture show:
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | | | | | | |
| Output Opt. Power | PO | 0 | - | +5 | dBm | 1 |
| Optical Wavelength | λ | 1540 | - | 1570 | nm | |
| Spectral Width | σ | - | - | 1 | nm | |
| Optical Rise/Fall Time | tr/tf | - | 170 | 260 | ps | 2 |
| Deterministic Jitter Contribution | TXΔDJ | - | - | 0.07 | UI | 3 |
| Total Jitter Contribution | TXΔTJ | - | - | 0.007 | UI | |
| Optical Extinction Ratio | ER | 9 | - | - | dB | |
| Receiver | | | | | | |
| Average Rx Sensitivity | RSENS | - | - | -25 | dBm | 4 |
| Maximum Received Power | RXMAX | 0 | - | - | dBm | |
| Optical Center Wavelength | λC | 1270 | - | 1600 | nm | |
| LOS De-Assert | LOSD | - | - | -25 | dBm | |
| LOS Assert | LOSA | -36 | - | - | dBm | |
| LOS Hysteresis | | 0.5 | - | - | dB | |
Notes:
- Class 1 Laser Safety.
- Unfiltered, 20-80%.
- Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
- Measured with PRBS 27-1 at 10-12 BER .
Mechanical Specifications:
