2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification

Shenzhen HiLink Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification from wholesalers

    Buy cheap 2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification from wholesalers
    • Buy cheap 2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification from wholesalers
    • Buy cheap 2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification from wholesalers

    2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL - GLC - FE - 100FX
    Certification : CE FCC Rohs
    Payment Terms : L/C, T/T, Western Union,Paypal , AliExpress , Alipay ,etc.
    Supply Ability : 3000/pieces/month
    Delivery Time : 2-5 working days
    Price : Negotiable
    • Product Details
    • Company Profile

    2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification


    2km LC / SC Fiber SFP Module Multimode MMF GLC-FE-100FX CE ROHS Certification

    FEATURES :

    Product Name155M SFP 2kmVendor NameHilink
    Power supply+ 3.3VMax Data Rate10Gbps
    Wavelength1310nmMax Cable Distance2km
    InterfaceLC / SCOptical ComponentsFP 1310nm
    Cable Type50/125μm MMFDOM SupportYes
    TX Power- 20 to - 14dBmReceiver Sensitivity-34 to 0dBm
    Commercial Temperature0 to 70 °C (32 to 158 °F)Power dissipation< 600mW


    APPLICATION :

    • SONET OC-3 / SDH STM - 1
    • 100BASE - FX
    IV. Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)
    ParameterSymbolMinTypMaxUnitRef.
    Transmitter
    Output Opt. PowerPO-20--14dBm1
    Optical Wavelengthλ127413101356nm
    Spectral Widthσ--3nm
    Optical Rise/Fall Timetr/tf--1500ps2
    Deterministic Jitter ContributionTXΔDJ--0.07UI3
    Total Jitter ContributionTXΔTJ--0.007UI
    Optical Extinction RatioER9--dB
    Receiver
    Average Rx SensitivityRSENS---34dBm4
    Maximum Received PowerRXMAX0--dBm
    Optical Center WavelengthλC1260-1600nm
    LOS De-AssertLOSD---34dBm
    LOS AssertLOSA-50--dBm
    LOS Hysteresis0.5--dB

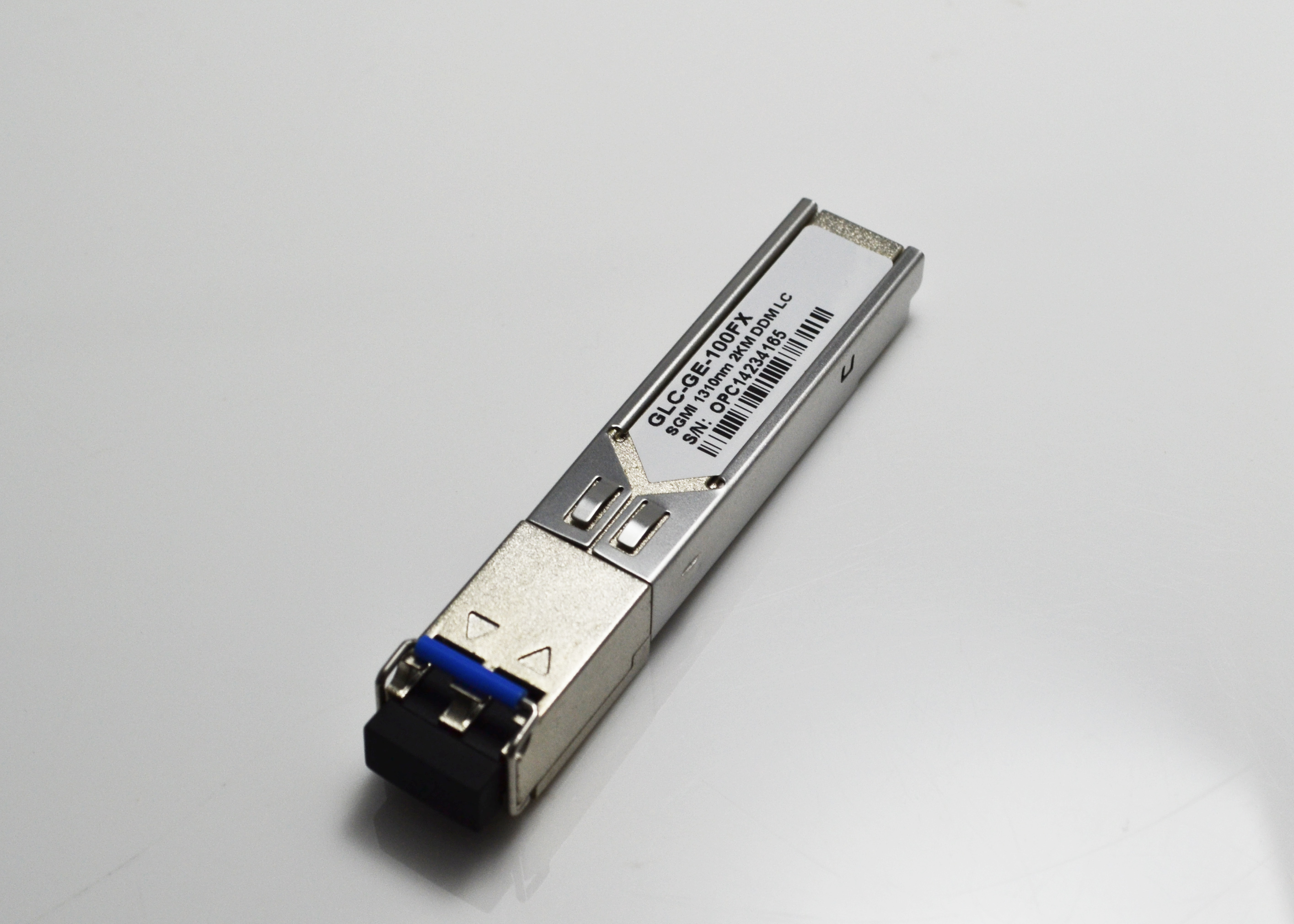

    PRODUCT SHOW :



    SHIPPING & DELIVERY & PACKAGING :

    International Express:
    DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.


    GUARANTEE :
    We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
