Module XENPAK 10GBASE X2 Transceiver Module

Ask Lasest Price
Brand Name :	HILINK
Model Number :	X2-10G-LR
Certification :	CE FCC Rohs
Payment Terms :	T/T, Western Union, L/C, T/T, Western Union, AliExpress , Alipay ,etc.
Supply Ability :	1000pcs/ month
Delivery Time :	2-5 days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

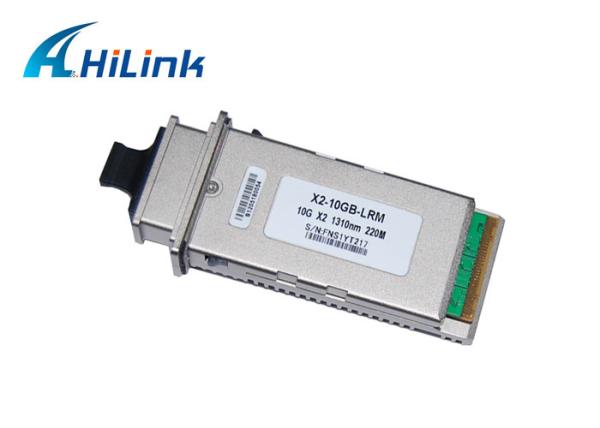

Module XENPAK 10GBASE X2 Transceiver Module

100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

X2-10GBASE-LR 1310nm, X2 transceiver module , reach to 10Km , SC

DESCRIPTION:

The X2-10GB-LR is a highly integrated,Serial optical transponder module for high-speed,
10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10km Transmission with an uncooled directly modulated 1310nm DFB Laser. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.

FEATURES:

Series Number	HL - X2 - 10G - LR	Vendor Name	HiLink
Power supply	+3.3V, APS(+1.2V)	Max Data Rate	10.3125Gbps
Wavelength	1310nm	Optical Components	1310nm DFB Laser
Interface	SC duplex	Max Cable Distance	10Km
Cable Type	MMF	DOM Support	Yes
TX Power	-8.2 to - 0.5dBm	Receiver Sensitivity	- 12.6 to -10.3dBm
Commercial Temperature	0 to 70°C (32 to 158°F)	Power dissipation	3.5- 4W

APPLICATION :

10GE Storage
10GE Core-routers
10Gbps Ethernet Transmission System, switches and routers

TRANSMITTER :

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Range				10	Km
Operating Date Rate			10.3125		Gb/s
Optical Transmit Power	Po	-8.2		0.5	dBm
Input Centre Wavelength	λ	1260	1310	1355	nm
SMSR.	SWSR	30			dB
Extinction Ratio	ER	4.5	6
Optical Modulation Amplitude	OMA	500			µW
Transmitter and Dispersion Penalty	TDP			3.2	dB

RECEIVER :

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Date Rate			10.3125		Gb/s
Overload	Po	0.5			dBm
Sensitivity in OMA	OMA0			-12.6	dBm
Stressed Sensitivity in OMA	OMAst			-10.3	dBm
Sensitivity MINI	Pmin			-14.4	dBm	1

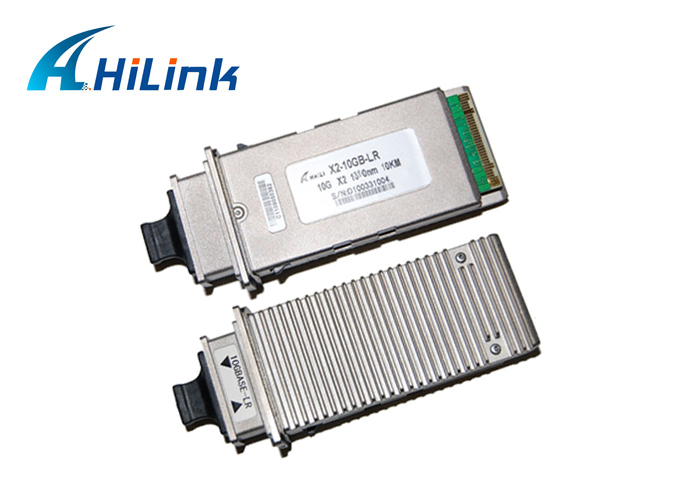

PRODUCT PICTURES :

Module XENPAK 10GBASE X2 Transceiver Module
GUARANTEE:

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials.
If there is compatibility problem or any quality problem, you can return the goods to us and have a replacement or refund.
All the optical transceivers have been through functional test and aging test.
We provide 3 years warranty for all the optical transceivers from the date of shipment.

PACKAGE & SHIPMENT:

International Express:
DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
