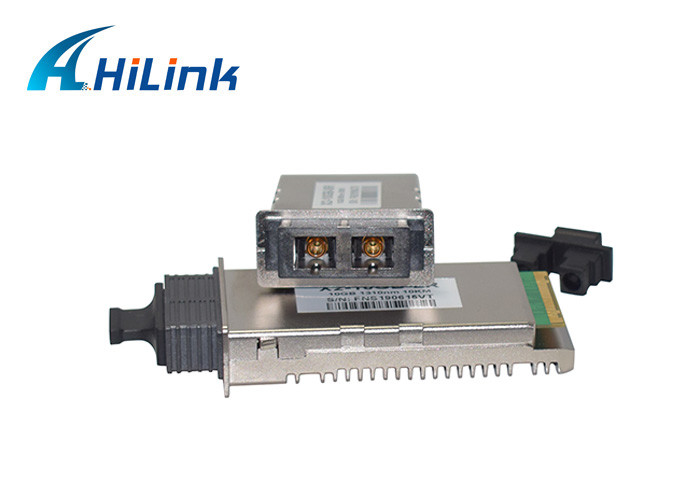

1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR

Shenzhen HiLink Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR from wholesalers

    Buy cheap 1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR from wholesalers
    • Buy cheap 1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR from wholesalers
    • Buy cheap 1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR from wholesalers
    • Buy cheap 1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR from wholesalers

    1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : X2-10G-LR
    Certification : CE FCC Rohs
    Payment Terms : T/T, Western Union
    Delivery Time : 2-5 days
    Price : Negotiable
    • Product Details
    • Company Profile

    1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR

    1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR

    General

    10GBASE-LR X2 transceiver module for SMF, 1310-nm wavelength, SC duplex connector

    10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.Support 10GBASE Ethernet

    Hot-swappable input/output device plugs into an Ethernet X2 port of a switch or router to link the port with the network .

    Product Details


    Compatible with X2 MSA Rev2.0b


    Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps


    Transmission Distance up to 10Km(SMF)


    SC Receptacle 1310nm DFB Laser


    SC Duplex Optical Connector


    Hot Pluggable 70-PIN Connector with XAUI Electrical Interface


    Management and control via MDIO 2-wire interface


    Power Supply : +3.3V, APS(+1.2V)


    Diagnostic Optics Monitoring


    Temperature Range: 0~ 70 °C


    ROHS Compatible


    Applications


    10GE Ethernet switches and routers

    10GE Core-routers

    10GE Storage

    Other 10Gbps Ethernet Transmission System


    Cisco 10G X2 transceiver Module series

    X2-10GB-SR=X2-10GB-SR-A10GBASE-SR X2 transceiver module for MMF, 300M
    X2-10GB-LR=X2-10GB-LR-A10GBASE-LR X2 transceiver module for SMF,10km
    X2-10GB-LRM=X2-10GB-LRM-A10GBASE-LRM X2 transceiver module for MMF 220M
    X2-10GB-ER=X2-10GB-ER-A10GBASE-ER X2 transceiver module for SMF, 40km
    X2-10GB-ZR=X2-10GB-ZR-A10GBASE-ZR X2 transceiver module for SMF, 80km
    X2-10GB-CX4=X2-10GB-CX4-AX2 transceiver module for CX4 cable, copper, InfiniBand 4X connector
    X2-10GB-LX4=X2-10GB-LX4-AX2 transceiver module for MMF,1310nm wavelength, SC duplex connector
    CWDM-X2-xxxx=CWDM-X2-xxxx-A10GBASE CWDM X2 transceiver module for SMF, 40km (xxxx--1470/1490/1510/1530/1550/1570/1590/1610)
    CWDM-X2-xxxxCWDM-X2-xxxx-A10GBASE CWDM X2 transceiver module for SMF, 80km (xxxx--1470/1490/1510/1530/1550/1570/1590/1610)
    DWDM-X2-xx.xxDWDM-X2-xx.xx-A10GBASE DWDM X2 transceiver module for SMF, 40km
    DWDM-X2-xx.xxDWDM-X2-xx.xx-A10GBASE DWDM X2 transceiver module for SMF, 80km

    1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR1310NM 10KM SC Dulplex X2 Transceiver Module Digital Optical Monitoring X2-10G-LR


    Qucik Specification:


    P/NX2-10GB-LR
    Datarate10.3G
    Wavelength1310nm
    Distance10KM
    TransmitterDFB
    ReceiverPIN
    MediaSMF
    DDM/DOMYES
    ConnectorSC
    ApplicationDatacom 10G Ethernet/10x FC
    Operating Temperature0℃~ +70℃
    Voltage Supply3.3V
    CertificationCE/FCC/RoHS/TUV/UL
    Brand

    Neuter, OEM



    Hilink Advantage

    Hilink establish in 2007, Specialize in this field with around 10-year experience.


    Credit is the basis, quality is the first",all our products are new,we never use second-hand components.


    Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


    We provide 3 years warranty for all our products from the date of shipment.


    All of our products get through CE, ROHS, FCC.


    We also provide DWDM CWDM WDM with optical solutions.


    The following is X2 -SFP+ Converters
