1:32 Single Mode PLC Optical Splitter Way , SC / APC Pigtailed PLC splitter

1, Hilink plc splitter

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI Photonics provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 ABS Box type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.

2.Feature

• Configuration Type: 1×32, SC/APC connector
• Good channel-to-channel Uniformity
• 2.0mm G.657A1 for fiber input/ output
• High Polarization Extinction Ratio
• Low Input Polarization Sensitivity, Insertion loss≤13.7dB, PDL≤0.3dB
• Compact design, Custom and Rugged Packaging Available
• Operating temperature : – 40 to 85°C
• Operating bandwidth: 1260- 1650nm
• Telcorida GR-1209/ 1221 Qualified

3.Application

• CATV Links
• PON Networks
• FTTX Systems
• Optical Signal Distribution

4.Specification

PLC Splitter ​Module Specification

Hilink Certification and Compliance

GR-1209-CORE Requirements for Passive Optical Components.

GR-1221-CORE Reliability Assurance Requiremnts for Passive Optical Components.

GR-326-CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies.

TIA-604 Fiber Optic Connector Intermateability Standard.

ROHS Directive on Restriction of Hazardous Substances

Q1: Can you provide OEM/ODM services?

A: Yes, we can. We are OEM for many big Carriers and local company , logo can be printed as per your request

Q2.What is your ability to provide products design services?

A: We have strong and rich experienced engineer team for FTTx ODN total solution design and proposal offering

Our Advantage:

· More than 8 years’ experience in Passive solution

· OEM & ODM service MADE FOR YOU

· FTTx ODN total solution provider

· Strong engineer design and after sales team

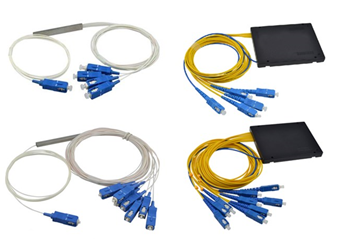

The Mini Tube PLC splitter , for compact package , including ABS and Mini tube.
