    Steel Tube Low Loss Splitter Optical Fiber 2X16 900μm LC / APC PLC Optical Splitter High Stability

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : mini-2x16
    Certification : CE FCC Rohs
    Payment Terms : T/T, Western Union
    Delivery Time : 1-3 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Steel Tube Low Loss Splitter Optical Fiber 2X16 900μm LC / APC PLC Optical Splitter High Stability

    Steel Tube Low Loss Splitter Optical Fiber 2X16 900μm LC / APC High Stability


    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

    Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.

    FeaturesApplication
    2×16 blockless PLC Splitter, LC/APC connectorOptical Signal Distribution
    900μm ITU G.657A1 for fiber input/outputData Communications
    Low insertion loss ≤ 17.1dBLan and CATV System
    Low polarization dependent loss (PDL) ≤ 0.3dBFTTX Deployment
    Operating bandwidth: 1260 - 1650nmFTTH Network
    Compact design, suitable for installation in optical equipmentsPassive Optical Networks (PON)
    Wide Operating Temperature: -40 - 85°C, support industry standard applicationsMeasuring System and Laser System
    High reliability and stability, Telecordia GR-1221/1209 compliantDWDM and CWDM Systems

    Product characteristic:

    Ultra low insertion loss and polarization loss,

    Dispersion of light uniformity good

    Wide range of wavelength bandwidth

    Working environment scope broad

    High reliability

    Small volume


    Application

    Can be widely used in the FTTx, passive light network (OPN), the cable network (CATV) and other light signal shunt system


    Standard

    Telcordia GR-1209-CORE Telcordia GR-1221-CORE YD/T1117-2001


    Specification
    Optical PerformanceSpecification
    Insertion Loss(1310.1490.1550)maxdB14.8
    Uniformity LossmaxdB1.1
    Polarization Dependent LossmaxdB0.3
    Wavelength BandwidthmixdB1260-1650
    Retum Loss(Design Guarantee)mixdB55.0
    Directivity(Design Guarantee)mixdB55.0
    Operating TemperaturedB-40~85

    Steel Tube Low Loss Splitter Optical Fiber 2X16 900μm LC / APC PLC Optical Splitter High StabilitySteel Tube Low Loss Splitter Optical Fiber 2X16 900μm LC / APC PLC Optical Splitter High Stability

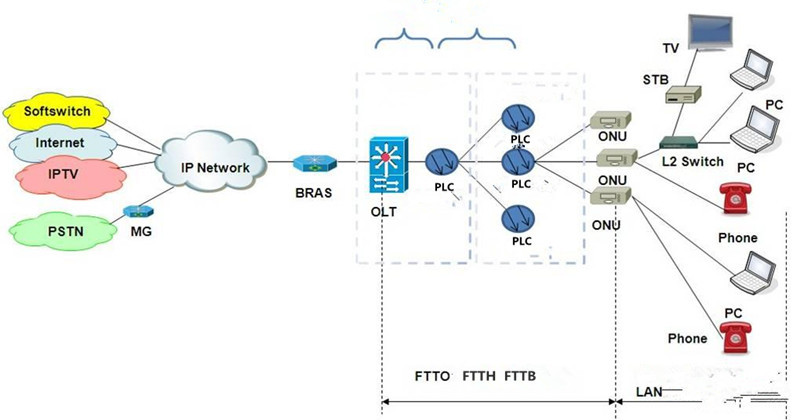

    System Design
