    Fast Ethernet Optical Transceiver Module Compatible GLC-SX-MM 850NM With DDM

    Fast Ethernet Optical Transceiver Module Compatible GLC-SX-MM 850NM With DDM

    Product Description

    The industry-standard Cisco Small Form-factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. The 1000BASE-SX SFP is compatible with the IEEE 802.3z 1000BASE-SX standard and operates on 50 micrometer multimode fiber links up to 550 m and on 62.5 micrometer FDDI-grade multimode fibers up to 220 m.


    Technical Detail
    General
    Device TypeTransceiver module
    Form FactorPlug-in module
    Width1.3 cm
    Depth5.7 cm
    Height0.9 cm
    Networking
    Connectivity TechnologyWired
    Cabling TypeEthernet 100Base-BX
    Data Link ProtocolFast Ethernet
    Compliant StandardsIEEE 802.3, IEEE 802.3ah
    Min Operating Temperature0 °C
    Max Operating Temperature70 °C

    I. Pin Descriptions
    PinSymbolName/DescriptionRef.
    1VeeTTransmitter Ground (Common with Receiver Ground)1
    2TX FaultTransmitter Fault.
    3TX DisableTransmitter Disable. Laser output disabled on high or open.2
    4MOD_DEF(2)Module Definition 2. Data line for Serial ID.3
    5MOD_DEF(1)Module Definition 1. Clock line for Serial ID.3
    6MOD_DEF(0)Module Definition 0. Grounded within the module.3
    7Rate SelectNo connection required
    8LOSLoss of Signal indication. Logic 0 indicates normal operation.4
    9VeeRReceiver Ground (Common with Transmitter Ground)1
    10VeeRReceiver Ground (Common with Transmitter Ground)1
    11VeeRReceiver Ground (Common with Transmitter Ground)1
    12RD-Receiver Inverted DATA out. AC Coupled
    13RD+Receiver Non-inverted DATA out. AC Coupled
    14VeeRReceiver Ground (Common with Transmitter Ground)1
    15VccRReceiver Power Supply
    16VccTTransmitter Power Supply
    17VeeTTransmitter Ground (Common with Receiver Ground)1
    18TD+Transmitter Non-Inverted DATA in. AC Coupled.
    19TD-Transmitter Inverted DATA in. AC Coupled.
    20VeeTTransmitter Ground (Common with Receiver Ground)1

    Notes:

    • Circuit ground is internally isolated from chassis ground.
    • Laser output disabled on TX Disable >2.0V or open, enabled on TX Disable<0.8V.
    • Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V.

    MOD_DEF(0) pulls line low to indicate module is plugged in.

    LOS is LVTTL output. Should be pulled up with 4.7k – 10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

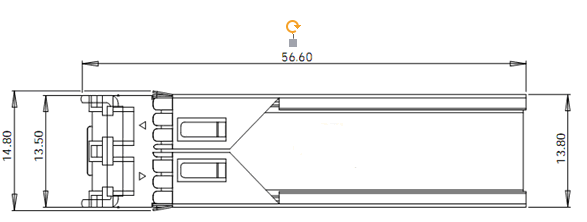

    Mechanical Spec
