    High Precision SFP+ Optical Transceiver 300M Cisco Compatible SFP Modules

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HLSP851XL-CDS3
    Certification : CE FCC Rohs
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 3-6 days
    Price : Negotiable
    • Product Details
    • Company Profile

    High Precision SFP+ Optical Transceiver 300M Cisco Compatible SFP Modules

    High Precision SFP+ Optical Transceiver 300M Cisco Compatible SFP Modules


    Feature


    Product overview
    (1) SFP+package with optical fiber connectors 10GBASE-SR
    (2) 850nm vertical cavity surface emitting lasers and photodetector
    (3) Up to 300 meter 2000mhz-km multimode fiber transmission
    (4) Power consumption < 1W
    (5) LVPECL compatible of data input/output interface
    (6) Low electromagnetic interference and electrostatic discharge protection
    (7) Laser safety standard IEC-60825 compatible
    (8) Compatible with devices
    (9) Compatible with SFF8472 Application
    Application
    (1) Ethernet
    (2) Fiber channel


    Specification


    Absolute maximum ratings


    ParameterSymbolsMinimumMiximumUnit
    Storage temperatureTst-40+85°C
    Power supply voltageVcc0+3.6V
    Operating relative humidityRH085%

    Work environment


    ParameterSymbolsMinimumTypicalMiximumUnit
    Power supply voltageVcc3.153.45V

    Operating case temperature


    CommercialTc0+70°C
    Power consumption1W
    Data transfer rate10.3125Gbps

    Optical characteristics

    (Working environment temperature 0°C to +70°C, Vcc =3.3 V)


    ParameterSymbolsMinimumTypicalMiximumUnit
    Transmitter section
    Center wavelengthlo840850860nm
    RMS spectral widthDl--0.45dB
    Average output powerPo-5--1dBm
    Extinction ratioEr3.0--dB
    Dispersion Penalty3.9dB
    Relative intensity noiseRIN12OMA-128dB/Hz
    Total jitterTjIEEE 802.3ae
    Receiver section
    Center wavelengthlo850nm
    Receiver sensitivityRsen-11.5dBm
    Stress sensitivityRsen7.5dBm
    Receive overloadRov0dBm
    Echo loss12dB
    LOS AlarmLOSA-17dBm
    LOS DessertLOSD-15dBm
    LOS hysteretic0.54

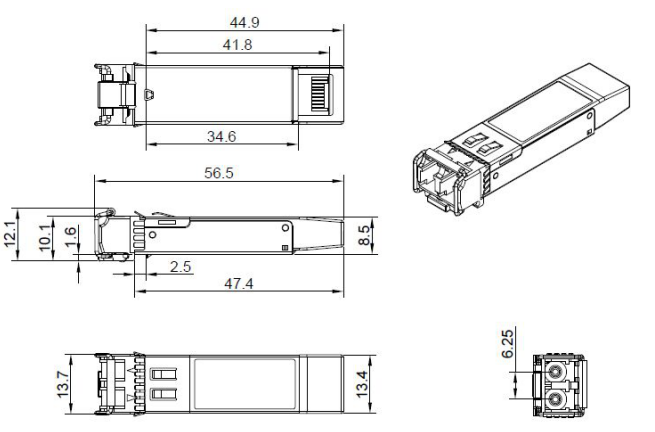

    Mechanical Specification



    Warranty

    We promise all the advertised optical transceivers are brand new with new components and parts.
    We absolutely never use old and refurbished materials.
    All the optical transceivers have been through functional test and aging test.
    We provide 3 years warranty for all the optical transceivers from the date of shipment.



    Shipment

    Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of by FedEx, DHL, UPS, TNT and EMS.


    Some items in stock can be shipped out the same day . The Items with no stock, then the shipment would be done in 3-7 days.


    DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.


    For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
