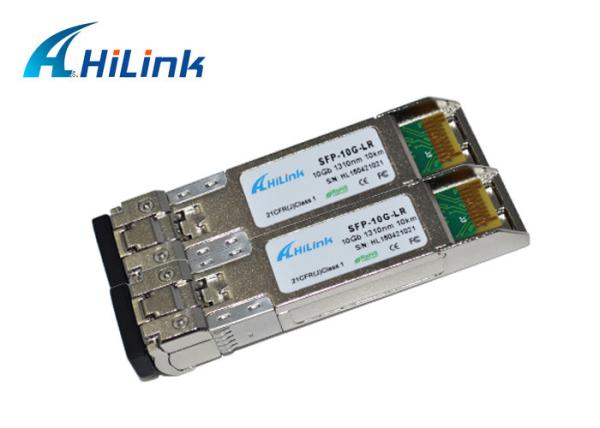

SFP+ Module 10Gbase 1310nm LR 10km Dual Fiber LC connector

Description

This 1310 nm DFB 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km.

The SFP+ LR module electrical interface is compliant to SFI electrical specifications.

The transmitter input and receiver output impedance is 100 Ohms differential.

Data lines are internally AC coupled.

The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.

Features

Optical interface compliant to IEEE 802.3ae 10GBASE-LR

Electrical interface compliant to SFF-8431

Hot Pluggable

1310nm DFB transmitter, PIN photo-detector

Operating temperature: 0 to 70 °C

Low power consumption

Applicable for 10km SMF connection

All-metal housing for superior EMI performance

Advanced firmware allow customer system encryption information to be stored in transceiver

Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other optical links

Warranty

We promise all the advertised optical transceivers are brand new with new components and parts.

We absolutely never use old and refurbished materials.

All the optical transceivers have been through functional test and aging test.

We provide 3 years warranty for all the optical transceivers from the date of shipment.

Shipment

Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of by FedEx, DHL, UPS, TNT and EMS.

Some items in stock can be shipped out the same day . The Items with no stock, then the shipment would be done in 3-7 days.

DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.

For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Shenzhen Hilink Technology Co., Ltd. was founded in 2007 year.

We are specialized in manufacturing and marketing fiber optic products.

Our core competencies are fiber optics of QSFP28,DWDM CWDM SFP/XFP

and network solutions of FWDM, DWDM CWDM CFP2  DCO, MPO AAWG,etc

which largely apply in cloudy computing, data center, networking access ,and so on.

For improving our main products and solution performance,

we also specialize with related optical products by customers' requirement.

We have professional production line and staff who are making high quality products in short time.

All the items are coming with certification, like RoHS CE FCC standard.

We are committed to providing class 1 products ,

and cost-effective solutions to create new values for our partners.

Our products and services have reached worldwide countries and districts.

We have established long-term win-win cooperation relationships with global clients,such as Viking Netherland , Sweden Telecoms, United states TX ISP.

With the growing reputation, now more and more partners from worldwide are joining us.

Our ideal is to make communication simpler and easier.

To delivery the extreme service and work value, we are striving for excellence and perfection with unfailing enthusiasm.
