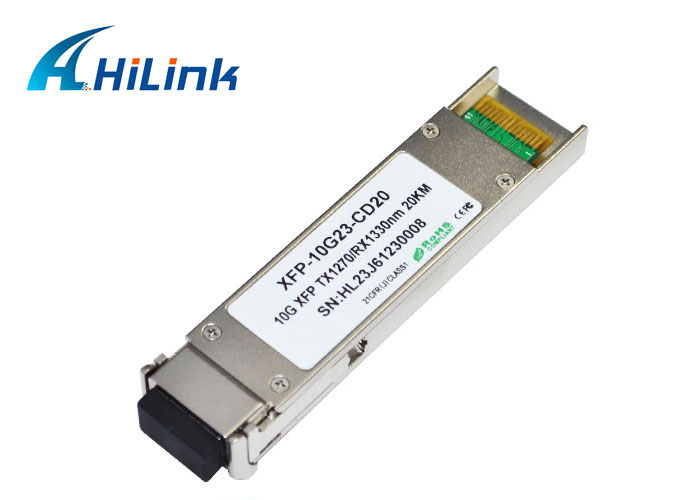

    Single Mode XFP Transceiver Module

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-BIDI-XFP-20-xx
    Certification : CE FCC Rohs
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000pcs/Week
    Delivery Time : 2-7 working days
    Price : Negotiable
    • Product Details
    • Company Profile

    Single Mode XFP Transceiver Module

    XFP transceiver modules 20km 10G BIDI XFP TX1270nm/RX1330nm Single-mode Single fiber


    Features:

    Operating data rate up to10.3Gbps

    Type: 1270nmDFB Tx/1330nmRx

    1330nmDFB Tx/1270nmRx
    Distance up to 20km

    Single 3. 3V Power supply and TTL Logic Interface

    Simplex LC Connector Interface

    Hot Pluggable

    Average Output Power:-6~1dBm

    Receiver Sensitivity:-14dBm

    Operating Case Temperature

    Standard: 0°C~+70°C
    Industrial:-40°C~+85°C

    Compliant with MSA SFP Specification

    DDM function


    Applications
    10GBASE-LR at 10.3125Gbps
    10GBASE-LW at 9.953Gbps
    Other Optical Links

    Description

    20km BIDI XFP transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

    ParameterSymbolMinTypMaxUnit
    Maximum Launch PowerPMAX-3-1+1dBm
    Optical Center WavelengthHBXFP-20-Uλ126012701280nm
    HBXFP-20-D132013301340
    Optical Extinction RatioER3.5dB
    Spectral WidthΔλ1nm
    Sidemode Supression ratioSSRmin30dB
    Rise/Fall Time (20%~80%)Tr/Tf50ps
    Optical Eye MaskIEEE802.3ae
    Operating Date RateBR9.9511.3Gb/s
    Receiver SensitivitySen-14dBm
    Maximum Input PowerPMAX0dBm
    Optical Center WavelengthUBXFP-20-UλC132013301340nm
    UBXFP-20-D126012701280
    Receiver ReflectanceRrx-16dB
    LOS De-AssertLOSD-15dBm
    LOS AssertLOSA-30dBm
    LOS HysteresisLOSH0.55

    dB
