    1310nm 10km LR Cisco Compatible SFP+ Transceiver Module , 10Gigabit Ethernet SFP+

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : SFP-10G-LR
    Certification : CE FCC Rohs
    Payment Terms : T/T, Western Union
    Supply Ability : 100PCS Per Day
    Delivery Time : 3-5 Working Days
    Price : Negotiable
    • Product Details
    • Company Profile

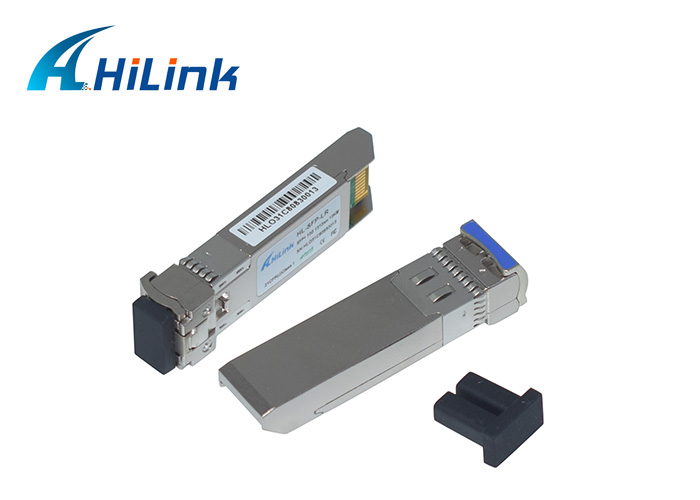

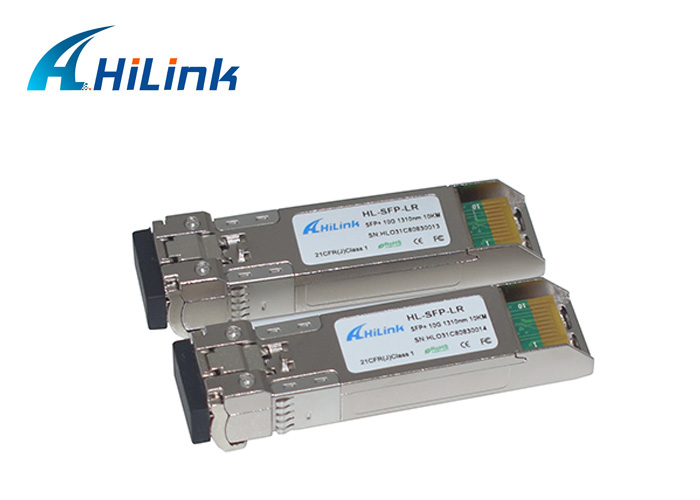

    1310nm 10km LR Cisco Compatible SFP+ Transceiver Module , 10Gigabit Ethernet SFP+

    1310nm 10KM LR Cisco Compatible SFP+ Transceiver Module , 10 Gigabit Ethernet SFP+

    Quick Detail:

    SFP-10G-LR CISCO compatible transceiver module

    1. Form: SFP+
    2. Data Rate: 10Gb/s
    3. Reach: 10km SMF
    4. Wavelenth: 1310nm
    5. Connector: LC Dulplex
    6. Appliactions: 10GBASE-LR 10G Ethernet
    7.DDM/DOM: Yes


    Product Details


    Item No.SFP-10G-LRVendor NameHilink
    Form TypeSFP+Max Data Rate10Gbps
    Wavelength1310nmMax Cable Distance10KM
    InterfaceLC duplexOptical ComponentsDFB1310nm
    Cable TypeSMFDOM SupportYes
    TX Power-8.2~0.5dBmReceiver Sensitivity< -14.4dBm
    Commercial Temperature Range0 to 70°C (32 to 158°F)HTS-Harmonized Code8517706000

    General Features:


    ♦ Optical interface compliant to IEEE 802.3ae

    ♦ Electrical interface compliant to SFF-8431

    ♦ Hot Pluggable

    ♦ 1310nm DFB transmitter, PIN photo-detector Operating case temperature: 0 to 70 °C

    ♦ Low power consumption

    ♦ Applicable for 10km SMF connection

    ♦ All-metal housing for superior EMI performance

    ♦ Advanced firmware allow customer system encryption information to be stored in transceiver

    ♦ Cost effective SFP+ solution, enables higher port densities and greater bandwidth


    Application


    ♦ 10GBASE-LR at 10.3125Gbps

    ♦ 10GBASE-LW at 9.953Gbps

    ♦ Other optical links
