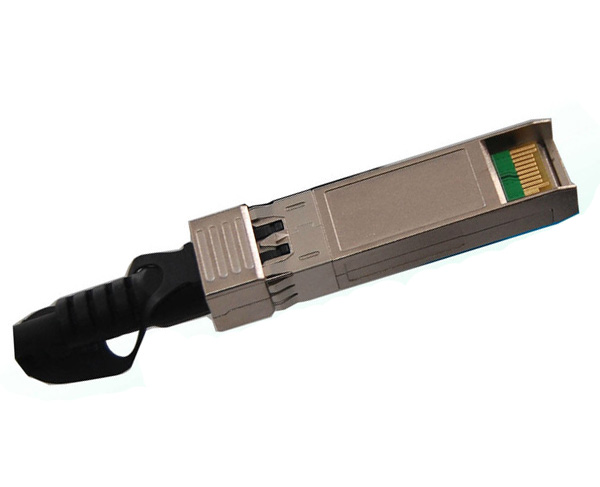

    5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-SFP-H10GB-CU5M
    Certification : CE FCC Rohs
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 3-7 working days
    Price : Negotiable
    • Product Details
    • Company Profile

    5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M

    5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M


    The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.


    Features


    • Support for multi-gigabit data rates up to 10.5Gbps
    • Data rates backward compatible to 1Gbps
    • Hot-pluggable SFP 20PIN footprint
    • I/O Connector designed for high speed
    • Differential signal applications
    • Improved Pluggable Form Factor(IPF)
    • Compliant for enhanced EMI/EMC performance
    • Compatible to SFP+ MSA
    • Temperature Range: 0~ 70 °C
    • RoHS Compatible

    Specification

    Cisco GenuineSFP-H10GB-CU*MVendor NameHilink
    Connector TypeSFP+ to SFP+Max Data Rate10Gbps
    Cable TypePassive Copper CableWire AWGAWG30/AWG24
    Cable Length0.5m-5mJacket MaterialPVC(OFNR)
    Temperature0 to 70°CCompatibilityCisco/Huawei/Mikrotik etc


    Applications


    ● 10Gigabit Ethernet
    ● Data center cabling infrastructure
    ● Storage Area Networks( SAN)
    ● Network Attached Storage
    ● Storage Servers
    ● 1G/2G/4G/8G Fiber Channel


    Standards Compliance:
    • Electrical: SFF-8431, SFF-8083
    • Mechanical: SFF-8432
    • EEPROM: SFF-8472

    10G SFP+ Copper Cables


    Part NumberProduct Description
    HL-SFP-10G-CU1MSFP+ Direct Attach Passive Copper Cable 1 Meter
    HL-SFP-10G-CU3MSFP+ Direct Attach Passive Copper Cable 3 Meter
    HL-SFP-10G-CU5MSFP+ Direct Attach Passive Copper Cable 5 Meter
    HL-SFP-10G-CU7MSFP+ Direct Attach Active Copper Cable 7 Meter
    HL-SFP-10G-CU10MSFP+ Direct Attach Active Copper Cable 10 Meter

    Related Products:
    SFP+ DAC cable for Cisco
    for Cisco SFP-H10GB-CU1M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 1-Meter
    for Cisco SFP-H10GB-CU3M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 3-Meters
    for Cisco SFP-H10GB-CU5M, 10Gbps, SFP+ Twinax, direct-attach copper cable, 5-Meters
    for Cisco SFP-H10GB-ACU7M, 10Gbps, SFP+ Twinax, active cable, 7-Meters
    for Cisco SFP-H10GB-ACU10M, 10Gbps, SFP+ Twinax, active cable, 10-Meters
