    High Density Connections DAC SFP Plus Cable For Data Center Cabling Infrastructure

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : SFP-H10GB-CU5M
    Certification : CE FCC Rohs
    Payment Terms : T/T, Western Union
    Delivery Time : 1-3 Days
    Price : Negotiable
    • Product Details
    • Company Profile

    High Density Connections DAC SFP Plus Cable For Data Center Cabling Infrastructure

    High Density Connections DAC SFP Plus Cable For Data Center Cabling Infrastructure

    Product Description

    The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.


    Features

    Cisco GenuineSFP-H10GB-CU5MVendor NameHilink
    Connector TypeSFP+ to SFP+Max Data Rate10Gbps
    Cable TypePassive Copper CableWire AWG24AWG
    Cable Length5mJacket MaterialPVC
    Temperature0 to 70°C (32 to 158°F)HTS-Harmonized Code8544700000



    Applications

    High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
    Switched fabric I/O such as ultra high bandwidth switches and routers
    Data center cabling infrastructure
    High density connections between networking equipment

    Recommended Operating Conditions

    ParameterSymbolMinTypicalMaxUnit
    Storage Ambient Temperature-40+85Centigrade
    Operating Case TemperatureTc0+70Centigrade



    Systems

    PerformanceMedia
    10.5 Gpbs line speed, full duplex

    Bit error rate: better than 10E-12

    Hot-pluggable, industry-standard Small Form-Factor

    Pluggable (SFP+) copper cable, available as 0.2m, 0.5m, 1m, 3m, 5m or 10m.



    About order

    Part No.Product Description
    SFP+-10G-CU10G SFP+ Direct Attach Passive Copper Cables 0.2m,0.5m,1m,3m,5m or 10m Reach

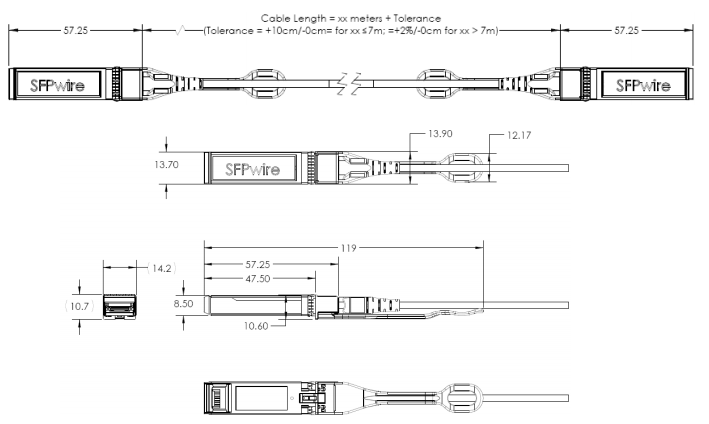

    Mechanical Specifications
