    8Ch Dual OADM DWDM Mux Demux ABS BOX Module High Stability CE ROHS Certification

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-DW-O/D-Nch XX
    Certification : CE FCC Rohs
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 1-6working days
    Price : Negotiable
    • Product Details
    • Company Profile

    8Ch Dual OADM DWDM Mux Demux ABS BOX Module High Stability CE ROHS Certification

    8Ch Dual OADM DWDM Mux Demux ABS BOX Module High Stability CE ROHS Certification


    Overview

    Dual 8 channels DWDM dual fiber OADM East-or-West box module LC/UPC

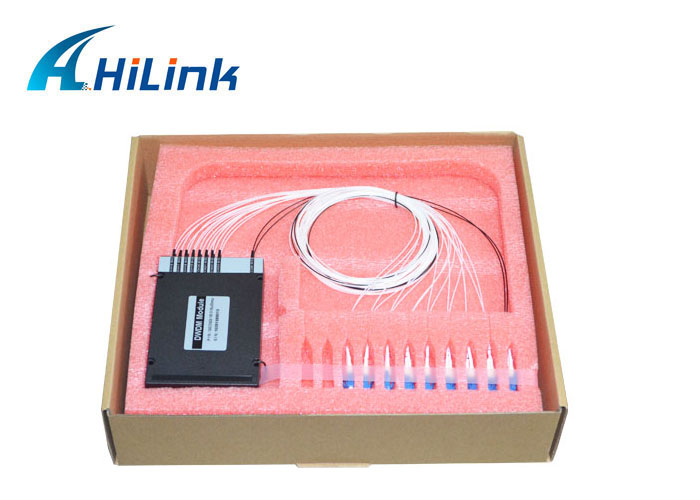

    8ch DWDM Add+Drop Multiplexers in splice/pigtailed ABS module, 100GHz ITU grid, duplex LC/UPC ,for rather big channels , more than 35ch, DWDM filters purpose.
    Hilink DWDM/ADD DROP modules are Dense Wave Division Multiplexing (DWDM) Optical Add/Drop Multiplexers (OADM). The DWDM/AD modules add (multiplex) and drop (demultiplex) selected channels, or wavelengths, on both directions (east and west) or one direction (east or west) of a DWDM common fiber link. The technology enables intelligent planning and flexible provisioning of optical services while simplifying the deployment and maintenance of optical networks.
    Access points can be added to line, bus, and rings networks, where the east and west ring design provides redundant protected function


    1. Features

    High Channel Isolation

    Low Insertion Loss

    Optical Path Epoxy Free

    Ultra Low TDL

    Compact Design

    Good channel-to-channel uniformity

    Channel spacing: 0.8nm(100GHz Grid)

    High Reliability and Stability


    2. Applications

    Dense WDM System

    PON Networks

    CATV Links

    Telecommunication

    Fiber optical amplifier

    Metro/Access/FTTH


    3. Compliance

    Telcordia GR-1209-CORE-2001

    Telcordia GR-1221-CORE-1999

    RoHS


    Performance Specifications


    Wavelength40 channels C21-C60Channel Spacing100GHz(0.8nm)
    Line TypeDual fiberClient PortSimplex or Duplex LC/UPC
    Special PortMonitor port&1310nm portDimension442mm(W) x 217mm(D) x 44mm(H)
    Insertion Loss< 5.0 dB, 3.5 dB typicalReturn Loss> 45 dB
    Operating Temperature-5°C~ +75°CStorage Temperature-40°C~+80°C


    1×N DWDM Mux/Demux Module


    Parameters
    Channel Space (GHz)100200
    Channel Number1*41*81*161*41*81*16
    Center Wavelength (nm)ITU Grid
    Center Wavelength Accuracy (nm)± 0.05± 0.1
    Channel Passband (@-0.5dB) (nm)0.220.5
    Fiber TypeSMF-28e with 900um loose tube or customer specified
    IL (dB)1.83.04.01.72.93.8
    Passband Ripple (dB)0.350.40.50.350.40.5
    Isolation (dB)Adjacent Channel2528
    Non-Adjacent Channel40
    PDL (dB)0.2
    PMD (ps)0.1
    RL (dB)45
    Directivity (dB)50
    Maximum Optical Power (mw)300
    Operating Temperature (°C)-40~85
    Storage Temperature (°C)-40~85
    BOX Package (mm)100*80*10 or 140*115*18
    LGX Package1U,2U
    19’’ Rack mount Package1U

    above specification are for device without connector.

    Order Information

    WDMChannelConfiguration1st ChannelFiber TypeFiber LengthConnector
    D16=16 ChannelM=Mux
    D=DeMux    		51=195.1
    53=195.3
    55=195.5
    57=195.7

    L=900um loose tube


    S=2.0mm loose tube


    R=3.0mm loose tube

    		1=1M00=None
    FC=FC/PC FA=FC/APC
    SC=SC/PC SA=SC/APC
    ST=ST/PC
    LC=LC/PC

    With the popular LC/UPC design, the Mux/Demux is more suitable for fiber optic link that is terminated with LC connectors and widely used in CWDM and DWDM system. Used to combine or divide wavelength channels onto an optical transmission fiber, it is the key device of WDM systems. 2CH, 9CH and 18CH CWDM Mux/DeMux, as well as 40CH DWDM Mux/DeMux are recommended here which gives more flexibility and reliability to your WDM network in a cost-effective way.
