    0.8nm Channel Spacing DWDM Mux Demux HL-DWDM - MUX/DEMUX ABS Box 8CH 100GHz

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-DWDM - MUX/DEMUX
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100pcs/week
    • Product Details
    • Company Profile

    0.8nm Channel Spacing DWDM Mux Demux HL-DWDM - MUX/DEMUX ABS Box 8CH 100GHz


    ABS box 8CH 100GHz DWDM Module MUX/DEMUX


    Features:
    C Band
    2-44 channels DWDM Mux/Demux (CH17-CH61)
    Channel spacing: 0.8nm(100GHz Grid)
    Com port is simplex
    Protocol transparent (10Mbps to 100Gbps)
    Low insertion loss
    Excellent channel isolation
    Epoxy-free optical path
    Compliant to G.657A1 standard
    ISO 9001 manufacturing facility
    Wide Operating Temperature: -40~+85℃


    Applications:
    Channel Add/Drop
    DWDM Network
    Wavelength Routing
    Fiber Optical Amplifier
    CATV System


    Compliance:
    Telcordia GR-1209-CORE-2001
    Telcordia GR-1221-CORE-1999
    ITU-T G.694.1
    RoHS


    1xN DWDM Mux/Demux Module

    Parameters
    Channel Space (GHz)100200
    Channel Number1*41*81*161*41*81*16
    Center Wavelength (nm)ITU Grid
    Center Wavelength Accuracy (nm)± 0.05± 0.1
    Channel Passband (@-0.5dB) (nm)0.220.5
    Fiber TypeSMF-28e with 900um loose tube or customer specified
    IL (dB)11.52.21.72.93.8
    Passband Ripple (dB)0.350.40.50.350.40.5
    Isolation (dB)Adjacent Channel2528
    Non-Adjacent Channel40
    PDL (dB)0.2
    PMD (ps)0.1
    RL (dB)45
    Directivity (dB)50
    Maximum Optical Power (mw)300
    Operating Temperature (°C)-40~85
    Storage Temperature (°C)-40~85
    BOX Package (mm)100*80*10 or 140*115*18
    LGX Package1U,2U
    19’’ Rack mount Package1U


    Order details

    2~44Channels available.
    Com port: simplex or duplex.
    Fiber connector: LC/SC or other

    .
    Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
    DWDM Solutions and DWDM SFP/XFP.


    Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.
    OEM/ODM is acceptable, so tell us your requirements.


    Some solutions example:



    SFP compatible Brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

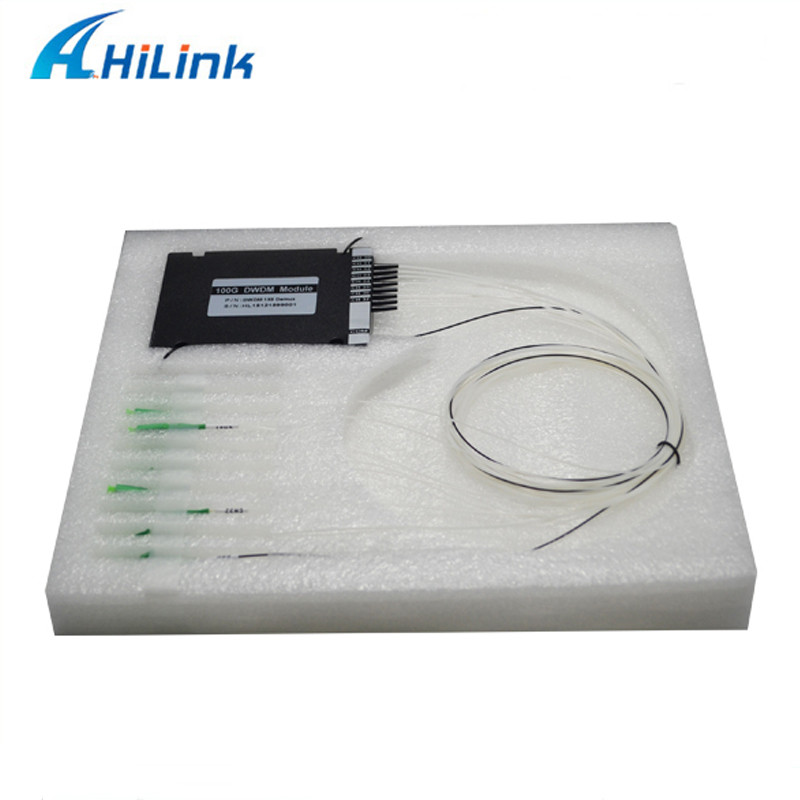

    Product Pic:





    Shipment & Payment
    1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
    2. Payment: T/T, Western Union, Paypal and so on.


    Guarantee:
    ›& Brand new.
    ›& OEM/ODM is available.
    ›& 100% through quality test and aging test.
    ›& 3 years warranty (From the date of shipment).


    Technician support:

    We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
    After-sales service
    We have after service for 24 hours, promises to supply technical service or guide in anytime.
    Our co-workers will be response clients's requirement in 12 hours after emergency happened.


    Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.


    Company Informations:

    Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
    RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
    Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
    We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
    We also have related optical products and good solutions to satisfy customers' requirements.

    New and old customers are warmly welcomed to visit our factory and office for further cooperation.
    Hope to build up a business relation with you.
