    High Isolation HL-CWDM Mux Demux Module 8+1 Multiplexer With 8 Channel

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-CWDM Mux
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100pcs/week
    • Product Details
    • Company Profile

    High Isolation HL-CWDM Mux Demux Module 8+1 Multiplexer With 8 Channel

    High quality newest price CWDM 8+1 Multiplexer


    Product Description

    CWDM MUX is based on the use of the wavelength grid as defined by ITU-T G.694

    Low Insertion Loss


    High Isolation


    Low PDL


    Compact Design


    Good channel-to-channel uniformity


    Wide Operating Wavelength:


    From 1260nm to 1620nm


    Wide Operating Temperature:


    From -40°C to 85°C


    High Reliability and Stability


    Application

    CWDM System

    PON Networks


    CATV Links


    Compliance

    Telcordia GR-1209-CORE-2001

    Telcordia GR-1221-CORE-1999

    RoHS


    Specifications


    NCH CWDM Optical Add/Drop Module =CWDM MUX


    Parameters1CH2CH4CH8CH
    Center Wavelength (nm)ITU, ITU+1
    Passband (nm)ITU±6.5
    Operating Wavelength (nm)1460~1620 or 1260~1620
    Channel Space (nm)20
    Fiber TypeSMF-28e or customer specified
    IL(dB) (P/A Grade)Add&Drop Channel0.5/0.60.7/1.01.4/1.72.0/2.5
    Express Channel0.6/0.81.2/1.41.8/2.01.6/2.8
    Isolation(dB)Add&Drop Adjacent Channel30
    Add&Drop Non-Adjacent Channel50
    Express Channel25
    Ripple(dB)0.30.30.40.5
    PDL(dB)0.1
    PMD(ps)0.1
    RL(dB)45
    Directivity(dB)50
    Maximum Optical Power (mw)500
    Operating Temperature (°C)-40~85
    Storage Temperature (°C)-40~85
    BOX Package(mm)100*80*10140*115*18
    LGX Package1U, 2U
    19’’ Rack mount Package1U

    1. Specified without connectors.

    2. Add an additional 0.2dB loss per connector.

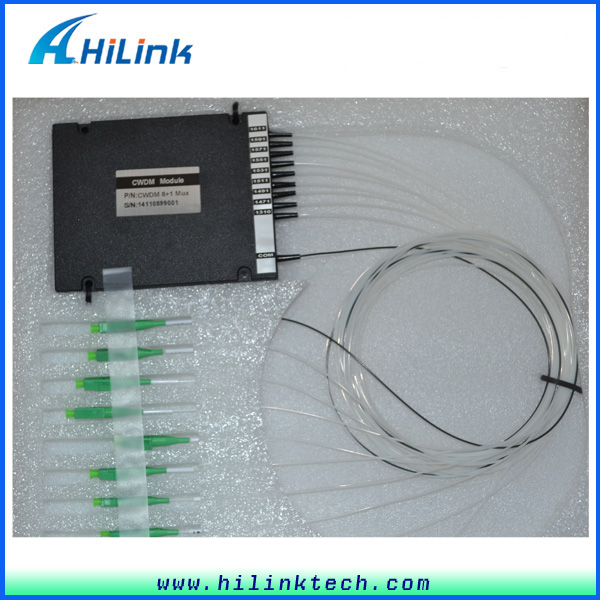

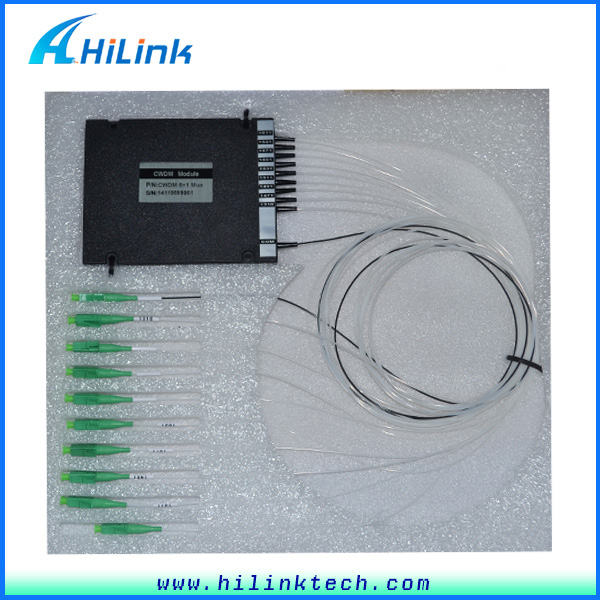

    Photo show:

    8+1CH CWDM mux-1.jpg8+1CH CWDM mux-2.jpg8+1CH CWDM Mux with LC.jpg8+1CH CWDM Mux with LC connector.jpg8+1CH CWDM Mux.jpg


    Packaging & Shipping

    We provide safe and reliable packaging:Plastic box+Carton

    Delivery time:2-5 working days
    Our Services

    We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, QSFP, SFP28 X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, 3COM, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.


    Company Information

    We are specialized in supplying network equipments. Our main products are optical transceiver modules and passive CWDM/DWDM multiplexers. The transceiver modules include SFP, GBIC, SFP+, XFP,X2, Xepnak, and CWDM/DWDM transceivers. The transceivers can be compatible with almost all the brands switches.

    We supply high quality products with competitive prices. We have professional staff who are always here to provide you technical support and best services.

    The most populor modules we often have stock. The items with no stock often have very short delivery time too. If you can't find the items needed on our website you just contact us. We will reply you shortly.


    FAQ

    1. Q:Do you sell second-hand products?

    A:No.All our products are brand new,we never use secont-hand components.

    2. Q:What payment terms do you accept?
    A:T/T,Paypal,Western Union are acceptable.

    3. Q:What are the shipping ways can you offer?
    A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

    4. Q:Do your products come with warranty?
    A:Yes,We provide 3 years warranty for all our products from the date of shipment.

    5. Q:What devices can your products compatible with?
    A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

    6. Q:How to place an order?
    A:1>Order details confirmed,please tell us the model and quantity you need.
    2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3>Confirm and ship the goods, then tracking number will be sent to you promptly.
    4>We will help to track your goods until you receive them safely.
    High quality newest price CWDM 8+1 Multiplexer
