    Mux Demux SMF-28e Cwdm Multiplexer 4 Channel Optical Mux Demux Cwdm Low Insertion Loss

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : CCWDM-XX
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100pcs/week
    • Product Details
    • Company Profile

    Mux Demux SMF-28e Cwdm Multiplexer 4 Channel Optical Mux Demux Cwdm Low Insertion Loss

    Mux Demux SMF-28e Cwdm Multiplexer 4 Channel Optical Mux Demux Cwdm Low Insertion Loss


    Features

    Low Insertion Loss

    High Isolation

    Low PDL

    Compact Design

    Good channel-to-channel uniformity

    Wide Operating Wavelength

    From 1260nm to 1620nm

    Wide Operating Temperature

    From -40°C to 85°C

    High Reliability and Stability


    Applications

    CWDM System

    PON Networks

    CATV Links


    Performance Specifications

    Parameter4 Channel8 Channel18 Channel
    MuxDemuxMuxDemuxMuxDemux
    Channel Wavelength (nm)1270~1610
    Center wavelength Accuracy (nm)±0.5
    Channel Spacing (nm)20
    Channel Passband (@-0.5dB bandwidth (nm)>13
    Insertion Loss (dB)≤1.6≤2.53.0
    Channel Uniformity (dB)≤0.6≤1.0≤1.5
    Channel Ripple (dB)0.3
    Isolation (dB)AdjacentN/A>30N/A>30N/A>30
    Non-adjacentN/A>40N/A>40N/A>40
    Inertion Loss Temperature Sensitivity (dB/°C)<0.005
    Wavelength Temperature Shifting (nm/°C)<0.002
    Polarization Dependent Loss (dB)<0.1
    Polarization Mode Dispersion<0.1
    Directivity (dB)>50
    Return Loss (dB)>45
    Maximum Power Handling (mW)300
    Opterating Temperature (°C)-5~+75
    Storage Temperature (°C)-40~85
    Package dimension (mm)L100 x W80 x H10 or L140xW100xH15

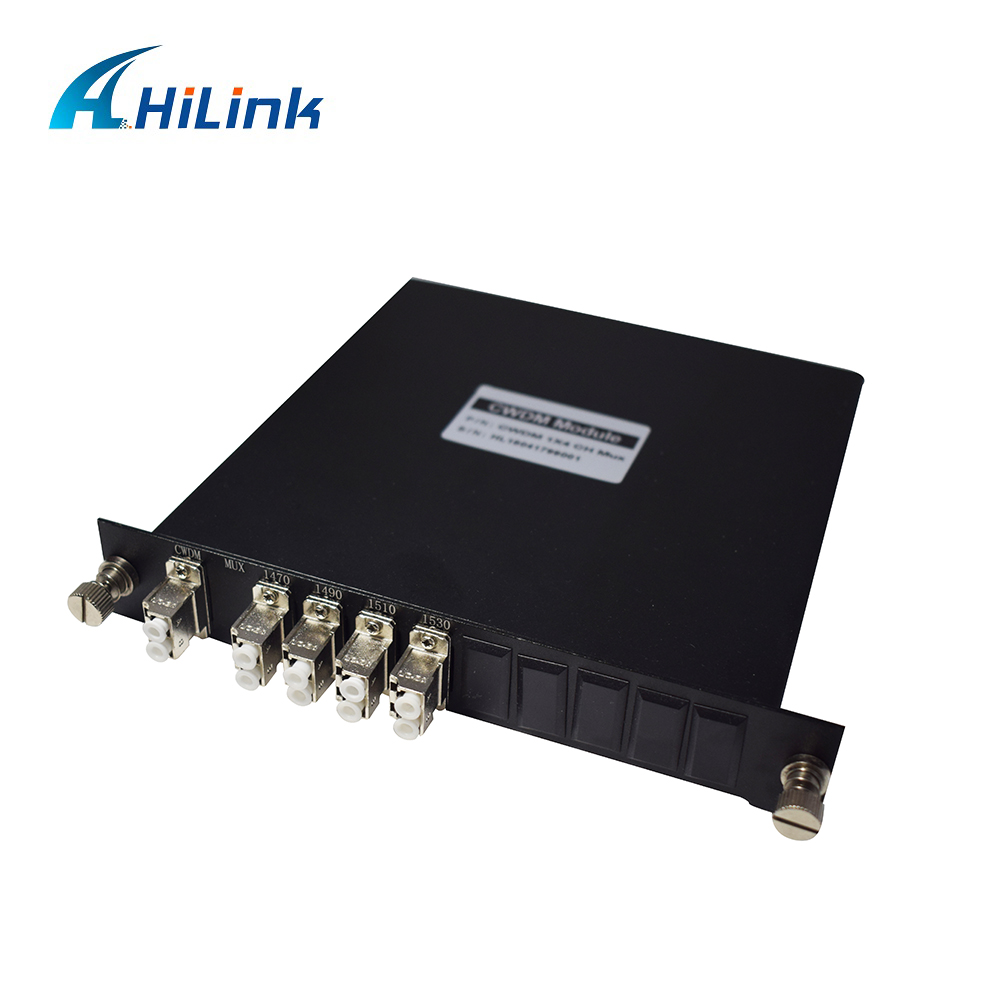

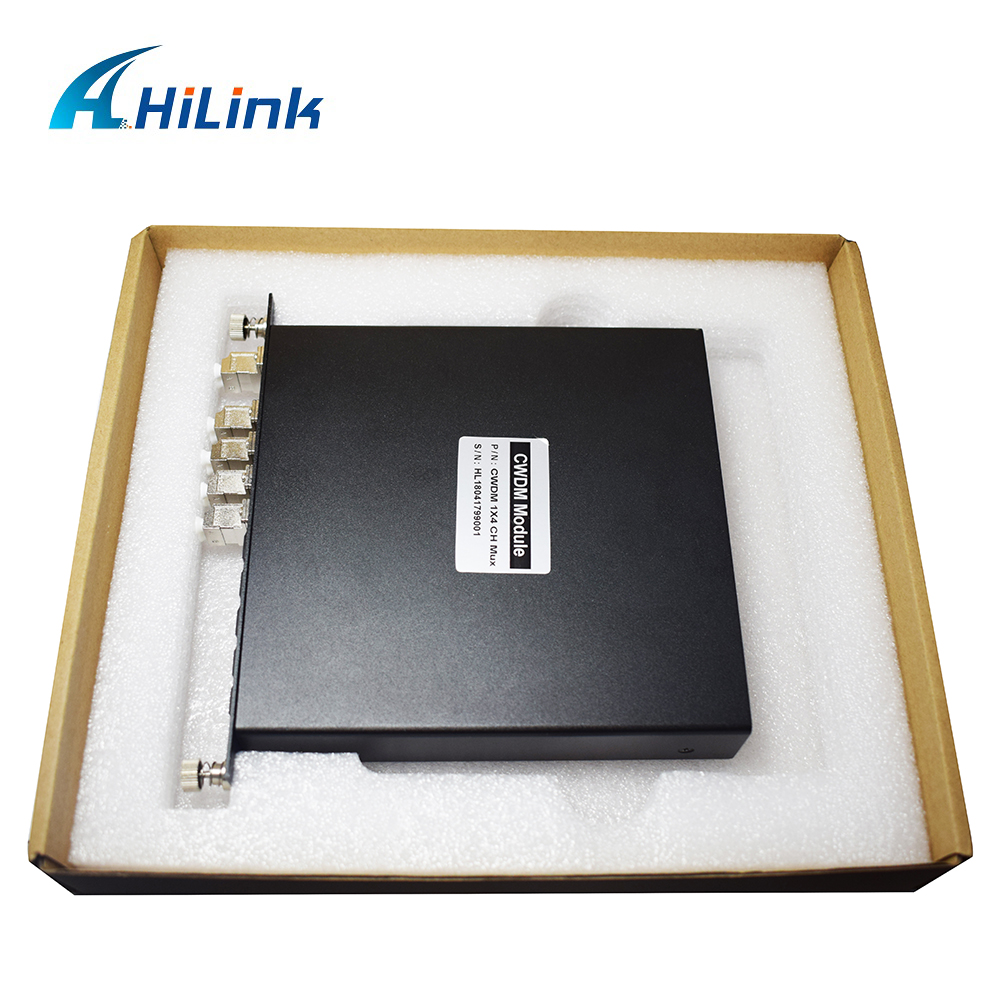

    True photo show


    Related Products


    Company Information



    Packaging & Shipping

    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.



    Our Services

    OEM/ODM order is available

    we can supply products according to your requirements, and design products label for your company.


    Guarantee
    We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.


    What we supply

    We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
