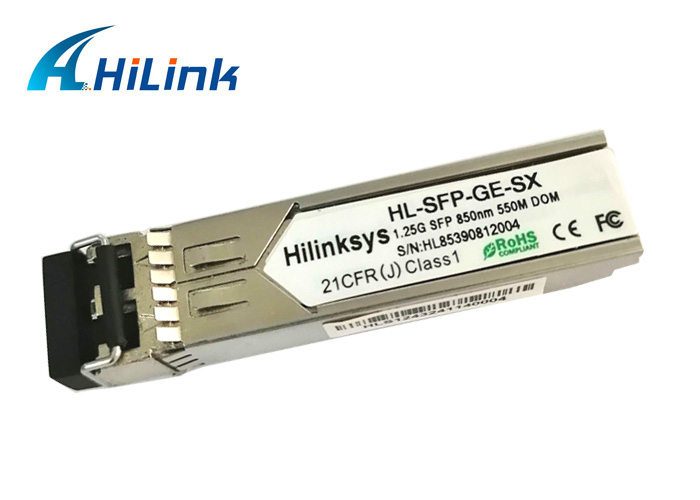

    Hilinksys Multimode 1000 Base SX Fiber SFP Transceiver Module 1.25G Short Reach

    Ask Lasest Price
    Brand Name : hilinksys
    Model Number : HL-SFP-SX-MM
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 50000pcs/month
    Delivery Time : 1-2working days
    • Product Details
    • Company Profile

    Hilinksys Multimode 1000 Base SX Fiber SFP Transceiver Module 1.25G Short Reach

    Hilinksys Multimode 1000Base SX SFP Transceiver Module1.25G Short reach optical transceiver


    Features:


    ♦ Dual data-rate of 1.25Gbps/1.063Gbps operation

    ♦ 850nm VCSEL laser and PIN photodetector for 550m transmission

    ♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

    ♦ DDM or DOM Fuction

    ♦ Internal Calibration or External Calibration

    ♦ Compatible with SONET OC-24-LR-1 and ROHS

    ♦ Operating case temperature range of 0°C to +70°C(Commercial)


    2 Application:

    1 Gigabit Ethernet

    2 Switch to Switch interface

    3 Switched backplane applications

    4 Router/Server interface

    5 Other optical transmission systems


    3 General

    The optical transceiver is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. SFP SX Features a 1000Base-SX (short haul) connector for Gigabit connectivity over fiber optic cabling. It's for multimode fiber and works at 850nm wavelength, transmission can reach 550m distance. The SFP SX is fit for Gigabit Ethernet port and link the port with the network. We supply quality compatible CISCO GLC-SX-MMD transceiver modules at very competitive prices. And delivery will be fast.


    Quick Specifications:


    P/NHL-GLC-SX-MMD
    Datarate1.25Gbps
    Wavelenght850nm
    Distance0.5km
    TransmitterVCSEL
    ReceiverPIN
    DDM/DOMYes
    MediaMMF
    Operating Temperature0°C to +70°C
    Available Compatible BrandCisco,Alcatel,Juniper,Huawei etc...

    Gigabit Ethernet Transceivers Module


    Reference Specification

    Cisco Part NumberDescription
    GLC-T=1000BASE-T SFP transceiver module for Category 5 copper wire, RJ-45 connector
    GLC-SX-MM=1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, dual LC/PC connector
    GLC-LH-SM=1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1310-nm wavelength, dual LC/PC connector
    GLC-ZX-SM=1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, dual LC/PC connector

    GLC-BX- D=1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, single LC/PC connector
    GLC-BX-U=1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1490-nm RX wavelength, single LC/PC connector
    GLC-2BX-D=Dual-channel 1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, two single LC/PC connectors
    SFP-GE-S=1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector
    SFP-GE-L=1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector
    SFP-GE-Z=1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector
    SFP-GE-T=

    1000BASE-T SFP transceiver module for Category 5 copper wire, extended operating temperature range, RJ-45 connector


    Competitive Advantages:


    1. Excellent quality and 3 years warranty
    2. Competitive price
    3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized
    5. Keep stock,Fast delivery

    Shipment

    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
