    XFP-10GER-OC192IR 10G XFP Transceiver , 1550nm transceiver fiber optic 40KM

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-XFP-10G-ER
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union , L/C ,AliExpess , Alipay , etc
    Supply Ability : 1500 pieces / month
    Delivery Time : 2-5 days
    • Product Details
    • Company Profile

    XFP-10GER-OC192IR 10G XFP Transceiver , 1550nm transceiver fiber optic 40KM

    This module can be make to be compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.


    1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance


    DESCRIPTION :

    The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and telecom applications.


    Transmitter (0~70@9.953Gb/s~11.1Gb/s)
    ParameterSymbolMin.Typ.Max.UnitNote
    Operating Date Rate9.9511.1Gb/s
    Ave. Output PowerPo-12dBm1
    Output Centre Wavelengthλ15301565nm
    Disable PowerPoff-30dBm
    Extinction RatioER8.2dB1
    Sidemode Supression Ratio30dB
    Rise/Fall Time (20%~80%)Tr/Tf45ps
    Dispersion penalty2dB1
    Generation Jitter 1(20KHZ-80MHZ)0.3UIp-p1
    Generation Jitter 2(4MHZ-80MHZ)0.1UIp-p1
    Optical Eye Mask 1GR-253-CORE/ITU-T G.6911
    Optical Eye Mask 2IEEE802.3ae2
    Reeceiver (0~70@9.953Gb/s~11.1Gb/s)
    ParameterSymbolMin.Typ.Max.UnitNote
    Operating Date Rate9.9511.1Gb/s
    OverloadPo0.5dBm
    Input Centre Wavelengthλ12701600nm
    Receiver SensitivityPmin-16dBm1
    Stressed Sensitivity in OMA-11.3dBm2
    LOS AssertLosA-30dBm
    LOS De-assertLosD-18dBm
    LOS Hysteresis0.54dB
    Optical Return Loss14dB
    Jitter ToleranceGR-253-CORE/ITU-T G.7831

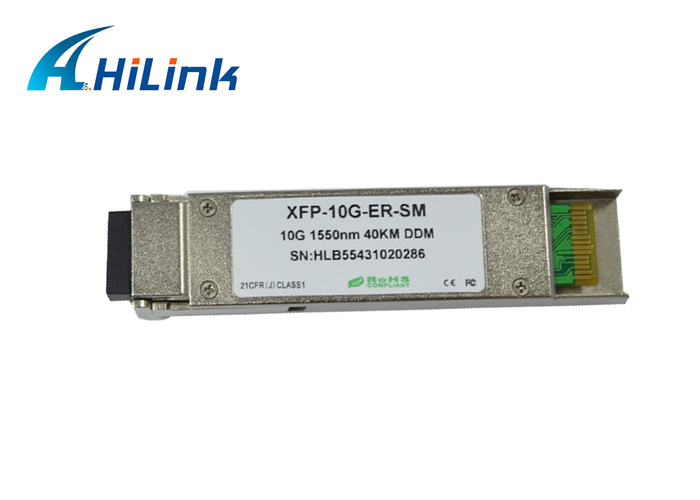

    PRODUCT SHOW :
    Quality XFP-10GER-OC192IR 10G XFP Transceiver , 1550nm transceiver fiber optic 40KM for sale
